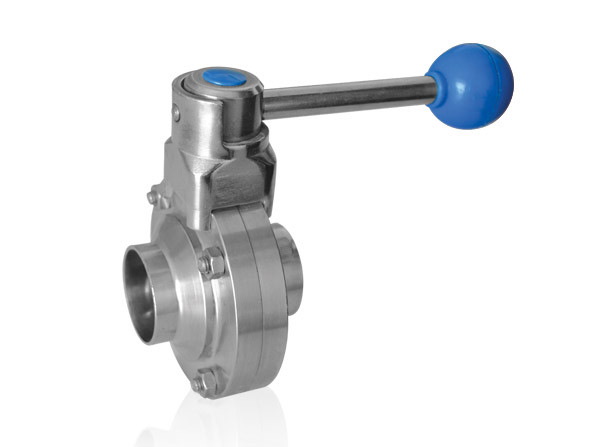

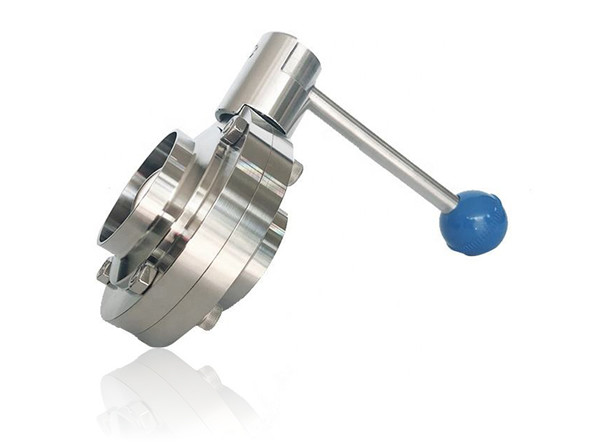

شیر پروانه دسته اهرمی استنلس استیل جوشی صنایع شیری ALFA 316
آببند
سیلیکون قرمز
آلیاژ:
316
ابعاد
25 تا 102
استاندارد
SMS
کشور سازنده
China
اتصال
جوشی Weled
نوع عملکرد
دسته اهرمی
Stainless Steel Lever Handle Welded Butterfly Valve for Dairy Industry ALFA 316
Introduction and Function of Stainless Steel Butterfly Valve
The stainless steel lever handle welded butterfly valve is a crucial component in piping systems for food, dairy, and pharmaceutical industries. This valve enables easy and quick flow control using a simple lever mechanism. The ALFA 316 lever handle stainless steel butterfly valve features a hygienic design with a polished surface, ensuring compliance with GMP standards, making it ideal for use in sanitary systems.
Technical Specifications of Stainless Steel Welded Butterfly Valve
- Material: Stainless Steel 316 (Corrosion and rust-resistant)
- Connection Type: Welded
- Operation: Manual lever handle
- Application: Dairy, food, and pharmaceutical industries
- Brand: ALFA
Available Materials
This valve is available in 304 and 316 stainless steel grades, with the 316 variant being more resistant to corrosive environments, making it the preferred choice for pharmaceutical and dairy applications.
Advantages of Stainless Steel Lever Handle Butterfly Valve
✅ Hygienic design suitable for food and pharmaceutical industries
✅ High resistance to corrosion and rust
✅ Quick and easy flow control with a lever handle
✅ Welded connection to minimize leakage and enhance safety in piping systems
✅ Bright polished internal and external surface, meeting sanitary standards
Applications of Welded Stainless Steel Butterfly Valve
- Dairy and milk processing industry
- Pharmaceutical and healthcare industries
- Food and beverage industry
- Piping systems under GMP standards
- Sanitary stainless steel piping systems
Standards and Manufacturing Process
This valve is manufactured in compliance with DIN, 3A, and ISO standards, ensuring high-quality production. The process includes bright polishing of internal and external surfaces to reduce contamination risks and facilitate cleaning.
Size Chart and Technical Specifications for Welded Stainless Steel Butterfly Valve
| Size (Inches) | Working Pressure (Bar) | Working Pressure (psi) | Inner Diameter (mm) | Outer Diameter (mm) |
|---|---|---|---|---|
| 1 | 10 | 145 | 25.4 | 50.5 |
| 1.5 | 10 | 145 | 38.1 | 50.5 |
| 2 | 10 | 145 | 50.8 | 64.0 |
| 2.5 | 10 | 145 | 63.5 | 77.5 |
| 3 | 10 | 145 | 76.2 | 91.0 |
| 4 | 10 | 145 | 101.6 | 119.0 |
Important Installation and Maintenance Notes
- Ensure clean and standard welding during installation to prevent contamination.
- Regular cleaning with sanitary solutions is recommended for extended service life.
- In pharmaceutical production lines, maintaining polished internal surfaces and routine cleaning is essential.
📍 For price inquiries and expert consultation, contact Bonyad Steel:
📍 Address: Tehran, North Khayyam Street, Opposite Park-e Shahr, Grand Khayyam Passage, First Floor, Unit 180
💬 For instant pricing via WhatsApp, click on the WhatsApp icon on this page.
شیر پروانهای دسته اهرمی استنلس استیل جوشی صنایع شیری ALFA 316
butterfly valve metal handle sanitary 316 stainless steel ALFA
معرفی و کارکرد شیر پروانهای استنلس استیل
شیر پروانهای دسته اهرمی استنلس استیل جوشی از تجهیزات مهم در خطوط لوله صنایع غذایی، لبنی و دارویی است. این شیر با عملکرد ساده و سریع، به کمک یک اهرم، جریان سیالات را کنترل و تنظیم میکند. شیر اهرمی استیل ALFA 316 با طراحی بهداشتی و سطح پولیش شده، از استانداردهای صنایع شیری و دارویی پیروی میکند و مناسب استفاده در سیستمهای GMP است.
مشخصات فنی شیر پروانهای استیل جوشی
- متریال: استنلس استیل 316 (مقاوم در برابر خوردگی و زنگزدگی)
- نوع اتصال: جوشی
- عملکرد: دستی با دسته اهرمی
- کاربرد: صنایع شیری، لبنی، غذایی و دارویی
- برند: و ALFA LAVAL - B&G -ALFA
متریالهای قابل ارائه
این محصول در دو گرید استنلس استیل 304 و 316 تولید میشود که مدل 316 به دلیل مقاومت بالاتر در برابر مواد خورنده، در صنایع دارویی و لبنی کاربرد بیشتری دارد.
مزایای شیر پروانهای اهرمی استیل
✅ طراحی بهداشتی و مناسب برای صنایع غذایی و دارویی
✅ مقاومت بالا در برابر خوردگی و زنگزدگی
✅ کنترل سریع و آسان جریان با دسته اهرمی
✅ اتصال جوشی برای کاهش نشتی و افزایش ایمنی در خطوط لوله
✅ سطح داخلی و خارجی پولیش براق مطابق با استانداردهای بهداشتی
کاربردهای شیر پروانهای جوشی استیل
- صنایع شیری و لبنی
- صنایع دارویی و بهداشتی
- صنایع غذایی و نوشیدنی
- خطوط تولید تحت استاندارد GMP
- سیستمهای پایپینگ استنلس استیل بهداشتی
استانداردها و فرآیند تولید
این شیر مطابق با استانداردهای DIN، 3A و ISO طراحی شده و فرآیند تولید آن شامل پولیش براق سطح داخلی و خارجی جهت کاهش تجمع آلودگی و تسهیل شستشو است.
جدول سایزها و مشخصات فنی شیر پروانهای جوشی استیل اهرمی :
| سایز (اینچ) | فشار کاری (بار) | فشار کاری (psi) | قطر داخلی (mm) | قطر خارجی (mm) |
|---|---|---|---|---|
| 1 | 10 | 145 | 25.4 | 50.5 |
| 1.5 | 10 | 145 | 38.1 | 50.5 |
| 2 | 10 | 145 | 50.8 | 64.0 |
| 2.5 | 10 | 145 | 63.5 | 77.5 |
| 3 | 10 | 145 | 76.2 | 91.0 |
| 4 | 10 | 145 | 101.6 | 119.0 |
نکات مهم درباره نصب و نگهداری شیر اهرمی استیل پروانه ای :
- هنگام نصب، از جوشکاری تمیز و استاندارد استفاده کنید تا از آلودگیهای احتمالی جلوگیری شود.
- برای افزایش طول عمر، شستشوی منظم با محلولهای بهداشتی توصیه میشود.
- در خطوط تولید صنایع دارویی، رعایت پولیش سطح داخلی و نظافت مداوم ضروری است.
📍 برای استعلام قیمت و دریافت مشاوره، با فروشگاه بنیاد استیل تماس بگیرید:
📍 آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 شماره تماس: 33922432 --33939659
💬 دریافت قیمت لحظهای از طریق واتساپ: روی آیکون واتساپ در همین صفحه کلیک کنید.
