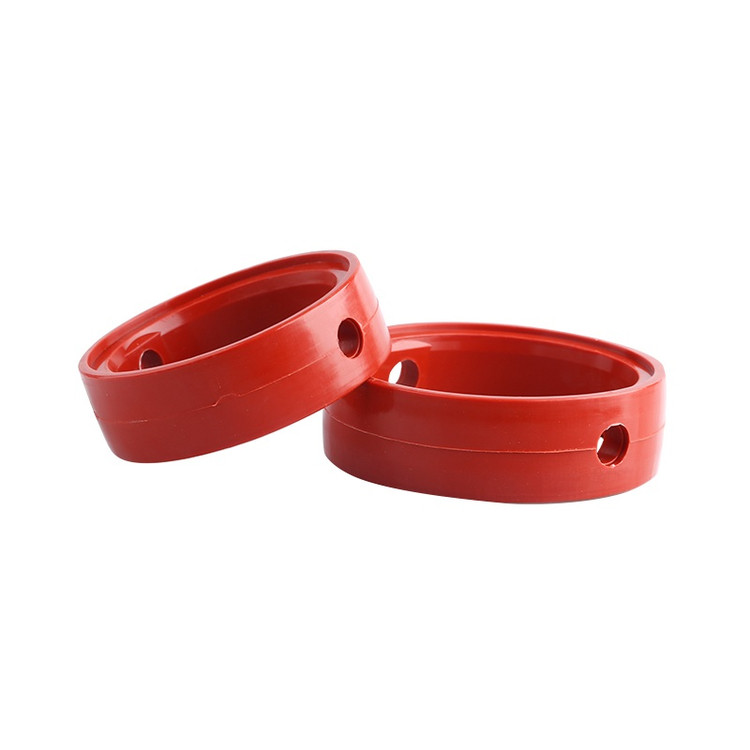

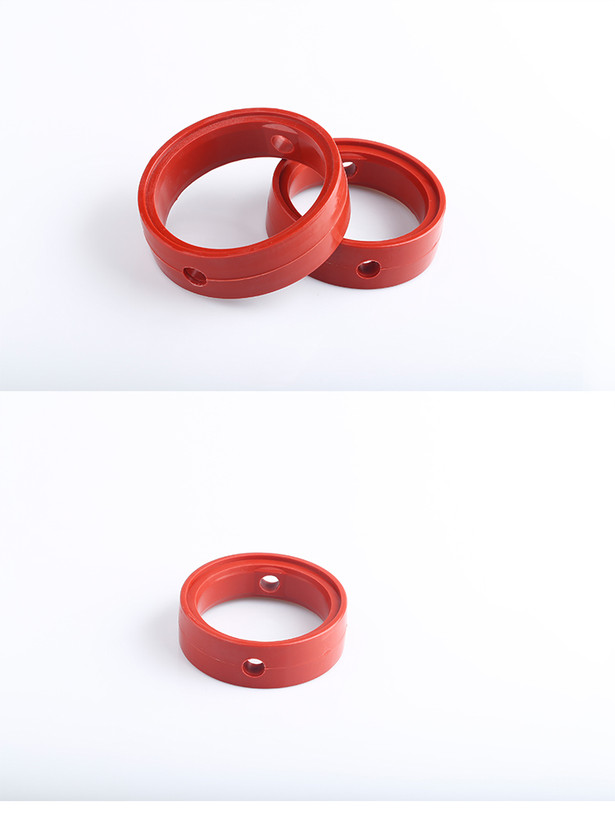

واشر شیرپروانه سیلیکونی صنایع غذایی B&G
آلیاژ:
سیلیکون قرمز red silicone
ابعاد
25 الی ۱۰۲ میلیمتر
فشار کاری
10 bar
استاندارد
SMS
نوع
پله دار
Silicone Butterfly Valve Gasket for Food Industry
Introduction and Function of Silicone Butterfly Valve Gasket
The silicone butterfly valve gasket is an essential component in the food, pharmaceutical, and dairy industries. It is used to ensure complete sealing and prevent leakage in butterfly valve connections. Made from food-grade silicone, these gaskets offer high resistance to heat, moisture, and chemicals, making them an ideal choice for sensitive applications.
Technical Specifications of Silicone Butterfly Valve Gasket
- Material: Food-grade pure silicone (Silicone FDA Approved)
- Color: Red & White Silicone
- Heat Resistance: Up to 220°C
- Hardness: Between 50 to 70 Shore A
- Standards: Compliant with FDA and GMP standards
Available Materials
- White Silicone: Suitable for general applications in food and pharmaceutical industries
- Red Silicone: Higher thermal and mechanical resistance for harsh working conditions
Available Brands
Silicone butterfly valve gaskets are available in reputable brands such as ALFA, ASSP, and ALFA LAVAL at Bonyad Steel.
Applications of Silicone Gasket in Various Industries
- Food Industry: Sealing pipelines in liquid and semi-solid food production
- Pharmaceutical Industry: Preventing contamination and ensuring hygiene standards
- Dairy Industry: Maintaining quality and preventing bacterial penetration into the system
Advantages and Disadvantages of Silicone Butterfly Valve Gasket
✅ Resistant to heat and chemicals
✅ High flexibility and easy installation
✅ Non-reactive with food and pharmaceutical substances
❌ Lower pressure tolerance compared to some industrial materials
Dimensions, Working Pressure, and Temperature Table for Silicone Butterfly Valve Gasket
| Size (Inch) | Thickness (mm) | Working Pressure (Bar) | Working Pressure (psi) | Operating Temperature (°C) |
|---|---|---|---|---|
| 1/2 | 3 | 10 | 145 | -40 to 220 |
| 1 | 3.5 | 8 | 116 | -40 to 220 |
| 1.5 | 4 | 6 | 87 | -40 to 220 |
| 2 | 4.5 | 5 | 73 | -40 to 220 |
| 3 | 5 | 4 | 58 | -40 to 220 |
| 4 | 5.5 | 3 | 44 | -40 to 220 |
Dimensional and Alloy Standards
- FDA 21 CFR 177.2600 standard for food and pharmaceutical applications
- GMP standard for hygiene compliance in industrial equipment production
- DIN & ISO standards for international compatibility in design and dimensions
Important Notes on Installation and Maintenance of Silicone Gasket
- Ensure the gasket seating area is completely clean and dry before installation.
- Avoid contact with industrial oils and strong solvents.
- Replace immediately in case of damage or deformation to prevent leakage.
📌 Purchase Silicone Butterfly Valve Gasket from Bonyad Steel
Bonyad Steel supplies high-quality silicone butterfly valve gaskets in various sizes at competitive prices. Due to currency fluctuations, please click on the WhatsApp icon on this page for an instant price quote.
📍 Address: Tehran, North Khayyam Street, Opposite Park-e Shahr, Grand Khayyam Mall, First Floor, Unit 180
واشر شیر پروانه سیلیکونی صنایع غذایی | Gasket for Butterfly Valve
معرفی و کارکرد واشر شیر پروانه سیلیکونی
واشر شیر پروانه یا گسکت سیلیکونی (Gasket for Butterfly Valve) یک قطعه ضروری در صنایع غذایی، دارویی و لبنی است که برای ایجاد آببندی کامل و جلوگیری از نشتی در اتصالات شیرهای پروانهای استفاده میشود. این گسکتها از سیلیکون بهداشتی تولید شدهاند و به دلیل مقاومت بالا در برابر حرارت، رطوبت و مواد شیمیایی، انتخابی ایدهآل برای کاربردهای حساس هستند.
اطلاعات فنی واشر سیلیکونی شیر پروانه
- متریال: سیلیکون خالص بهداشتی (Silicone FDA Approved)
- رنگ: سفید و قرمز (Red & White Silicone)
- مقاومت حرارتی: تا 220 درجه سانتیگراد
- سختی: بین 50 تا 70 Shore A
- استانداردها: مطابق با استانداردهای FDA و GMP
متریالهای قابل ارائه
- سیلیکون سفید: مناسب برای کاربردهای عمومی در صنایع غذایی و دارویی
- سیلیکون قرمز: دارای مقاومت حرارتی و مکانیکی بالاتر برای شرایط کاری سخت
برندهای موجود
واشر شیر پروانه سیلیکونی در برندهای معتبر مانند ALFA، ASSP، و ALFA LAVAL و B&G در فروشگاه بنیاد استیل موجود است.
کاربردهای واشر سیلیکونی در صنایع مختلف
- صنایع غذایی (Food Industry) برای آببندی خطوط تولید مواد غذایی مایع و نیمهجامد
- صنایع دارویی (Pharmaceutical Industry) برای جلوگیری از آلودگی و رعایت اصول بهداشتی
- صنایع لبنی (Dairy Industry) برای حفظ کیفیت و جلوگیری از نفوذ باکتریها به داخل سیستم
مزایا و معایب گسکت شیر پروانه سیلیکونی
✅ مقاوم در برابر حرارت و مواد شیمیایی
✅ انعطافپذیری بالا و نصب آسان
✅ عدم واکنش با مواد غذایی و دارویی
❌ تحمل فشار بالا نسبت به برخی متریالهای صنعتی کمتر است
جدول ابعاد، فشار کاری و دمای عملکرد واشر سیلیکونی شیر پروانه
| سایز (اینچ) | ضخامت (میلیمتر) | فشار کاری (بار) | فشار کاری (psi) | دمای کاری (°C) |
|---|---|---|---|---|
| 1/2 | 3 | 10 | 145 | -40 تا 220 |
| 1 | 3.5 | 8 | 116 | -40 تا 220 |
| 1.5 | 4 | 6 | 87 | -40 تا 220 |
| 2 | 4.5 | 5 | 73 | -40 تا 220 |
| 3 | 5 | 4 | 58 | -40 تا 220 |
| 4 | 5.5 | 3 | 44 | -40 تا 220 |
استانداردهای ابعادی و آلیاژی
- استاندارد FDA 21 CFR 177.2600 جهت استفاده در صنایع غذایی و دارویی
- استاندارد GMP برای رعایت اصول بهداشتی در تولید تجهیزات صنعتی
- استاندارد DIN & ISO جهت تطابق با ابعاد و طراحی بینالمللی
نکات مهم درباره نصب و نگهداری واشر سیلیکونی B&G
- قبل از نصب، محل قرارگیری گسکت کاملاً تمیز و خشک شود.
- از تماس با روغنهای صنعتی و حلالهای قوی پرهیز شود.
- در صورت آسیبدیدگی یا تغییر شکل، تعویض سریع انجام شود تا از نشتی جلوگیری گردد.
📌 خرید واشر شیر پروانه سیلیکونی از بنیاد استیل
فروشگاه بنیاد استیل تأمینکننده انواع واشر سیلیکونی شیر پروانه B&G در سایزهای مختلف با کیفیت بالا و قیمت رقابتی است. به دلیل نوسانات ارزی، لطفاً برای استعلام دقیق قیمت، روی آیکون واتساپ در همین صفحه کلیک کنید و قیمت آنی دریافت بفرمایید.
📍 آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 شماره تماس: 33922432-33939659
