شیر نمونه برداری aspetic کلمپی استنلس استیل ۳۱۶ ALFA

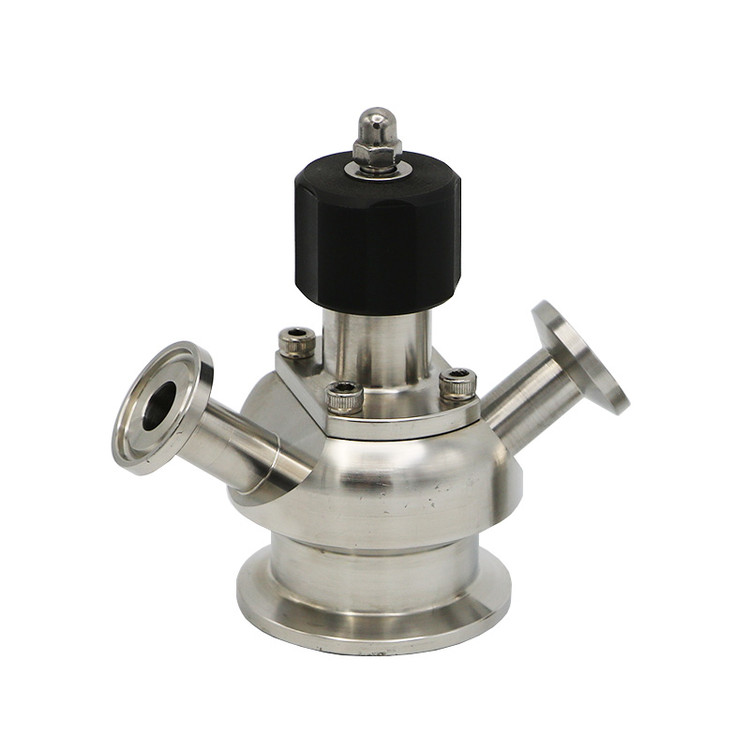

Aseptic Sampling Valve – Stainless Steel 316 – ALFA Brand (Clamp Type for Pharmaceutical Industries)

Introduction and Application of Aseptic Sampling Valve

The Aseptic Sampling Valve made of Stainless Steel 316 is a crucial component in pharmaceutical, food, and biotechnology industries. Designed for precise and hygienic sampling of fluids within process pipelines, this valve prevents cross-contamination. It can be used for injecting substances into the pipeline or extracting fluid samples for quality control.

Features and Benefits of Aseptic Sampling Valve

✔ Prevents Inlet Blockage: When the valve is closed, the piston extends to the pipe’s inner surface, ensuring no clogging of the inlet.
✔ Easy and Standardized Installation: Equipped with a Clamp Connection, allowing quick installation and removal.
✔ Sterilization-Friendly Design: After each use, the built-in spring mechanism closes the valve while keeping the passage open for sterilization using steam or cleaning solutions.
✔ Manual and Pneumatic Operation: Can be operated manually or pneumatically, depending on process requirements.

Technical Specifications of ALFA Aseptic Sampling Valve

• Body Material: AISI 304 / 316L Stainless Steel
• Connection Type: Threaded (BSP/NPT), Clamped, or Welded
• Available Sizes: ½" and ¾"
• Temperature Range: -10°C to 120°C (14°F to 248°F)
• Gasket Material: Silicone or EPDM (FDA 177.2600 Approved)
• Maximum Working Pressure:
  • Closed Position: 10 bar
  • Open Position: 5 bar for Silicone | 10 bar for Stainless Steel Components
• Internal Surface Finish: Ra ≤ 0.4 μm

Main Applications in Various Industries

✅ Pharmaceutical Industry: Sampling liquids for quality control without external contamination
✅ Food & Beverage Industry: Sampling dairy products, juices, and liquid food products
✅ Biotechnology Industry: Used in sterile processes and cell culture applications

Purchase Aseptic Sampling Valves from Bonyad Steel

High-quality ALFA brand aseptic sampling valves are available at Bonyad Steel with top hygiene and industrial standards. For professional consultation and price inquiries, please click on the WhatsApp icon on this page to contact us.
