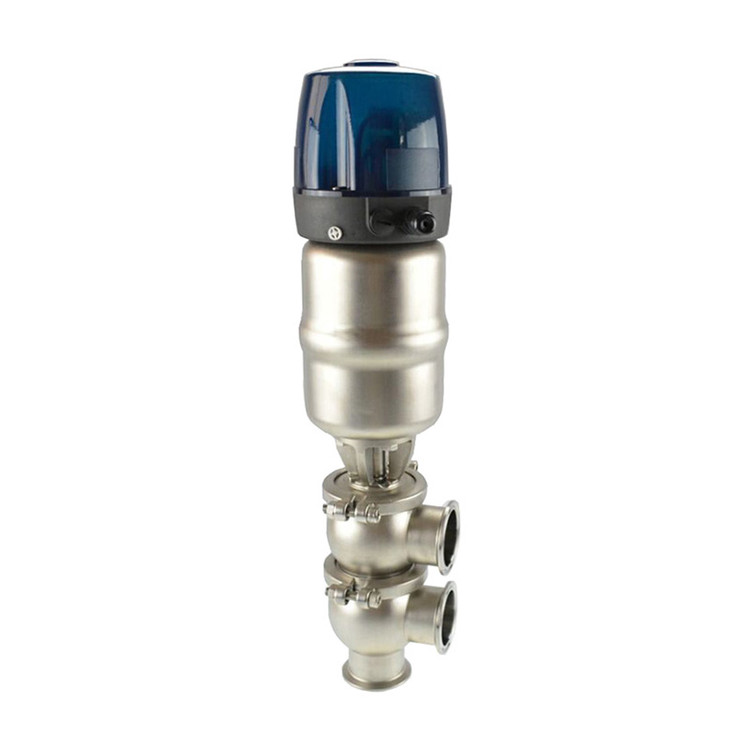

شیر شات آف ولو (Pneumatic shut-off ) پنوماتیکی با سری ThinkTop مدل Divert Seat استنلس استیل 316
آببند
silicon
آلیاژ:
304- 316
اتصال
جوشی /کلمپی
استاندارد
ISO-BPE_SMS
نوع عملکرد
کنترلی تدریجی
3-Way Hygienic Pneumatic Divert Seat Valve with ThinkTop 316 Stainless Steel
Introduction and Applications
The 3-Way Hygienic Pneumatic Divert Seat Valve with ThinkTop is a crucial component in the pharmaceutical, food, dairy, and beverage industries. This valve is designed to divert sanitary fluid flow without contamination and with minimal pressure drop. The pneumatic operation provides precise and fast control over the flow, and due to its hygienic design, it is used in sensitive processes that require high standards. This valve follows EHEDG hygienic design standards, ensuring optimal cleaning with no dead zones for an efficient cleaning process.
Technical Specifications
- Body Material: 316 Stainless Steel for high resistance to corrosion
- Control Type: Pneumatic (compatible with automated control systems)
- Design Type: ThinkTop (for installation in limited spaces)
- Connection Type: Tri-Clamp (TC) or Welded, depending on customer requirements
- Size Range: 1 inch to 4 inches
- Working Pressure: 10 Bar (145 psi)
- Working Temperature: -10°C to +140°C
- Pneumatic Actuator: Single-Acting
- Normally Open (NO) Option: Can be changed to Normally Open by reversing the position of the pneumatic actuator
Available Materials
- Body: 316L / 316 Stainless Steel
- Seals and Gaskets: EPDM, PTFE, and FKM (FDA compliant)
- Gasket with a specific profile ensures reliable performance under adverse working conditions.
- Hygienic design of the gasket ensures optimal cleaning.
Available Brands
- ALFA LAVAL
- B&G
- INOXPA
Industrial Applications
- Pharmaceutical Industry (GMP)
- Dairy and Food Industry
- Beverage Industry
- Sanitary fluid transfer systems
Advantages and Features
✅ EHEDG Hygienic Design to meet the highest hygienic standards
✅ Hygienic Gasket Design for optimal cleaning and prevention of contamination
✅ Single-Acting Pneumatic Actuator for precise flow control
✅ Normally Open (NO) Option by reversing the actuator position
✅ Easy Assembly/Disassembly of internal parts by loosening the clamp fastener
✅ Open Lantern for Visual Inspection of the shaft sealing
✅ 360º Adjustable Body for versatile installation and use
Standards
✔ 3A, FDA, ASME BPE
✔ Compliance with GMP sanitary line standards
Installation and Maintenance Tips
- Ensure the internal surfaces of the valve are clean before installation.
- Proper pneumatic pressure settings are required for optimal performance.
- Periodic cleaning using CIP/SIP methods will enhance the valve's lifespan.
- Internal components are easy to assemble and disassemble, making maintenance easier.
Contact and Purchase Information
Bonyad Steel is your trusted supplier of high-quality hygienic stainless steel equipment from reputable international brands.
📍 Address: Tehran, Khyam North Street, Opposite Park-e Shahr, Khyam Grand Mall, 1st Floor, Unit 180
💬 For an accurate price inquiry, please click on the WhatsApp icon on this page to get live pricing.
شیر شات آف ولو (Pneumatic shut-off ) پنوماتیکی مدل Divert Seat استنلس استیل کلمپی 316
3way Hygienic Pneumatic Divert Seat Valve
معرفی و کاربرد divert valve استیل(شیر شات آف ولو ) :
شیر سهراهه بهداشتی پنوماتیکی مدل Divert Seat با هد باریک، یکی از تجهیزات مهم در صنایع دارویی، غذایی، لبنی و نوشیدنی است. این نوع شیر برای تغییر مسیر جریان سیالات بهداشتی بدون ایجاد آلودگی و با حداقل افت فشار طراحی شده است. عملکرد پنوماتیکی این محصول، کنترل دقیق و سریع مسیر سیال را فراهم میکند و به دلیل طراحی بهداشتی، در فرآیندهای حساس که نیاز به استانداردهای بالا دارند، استفاده میشود. این شیر با رعایت طراحی بهداشتی طبق استانداردهای EHEDG به صورت یکپارچه و بدون نقاط مرده برای شستوشوی بهینه طراحی شده است.نام دیگر این محصول ولو شیر کنترلی یا control valve میباشد.این نوع شیر به صورت تدریجی و on , off میباشد .
اطلاعات فنی Pneumatic shut-off
- جنس بدنه: استنلس استیل 316 با مقاومت بالا در برابر خوردگی
- نوع کنترل: پنوماتیکی (قابل اتصال به سیستمهای کنترلی اتوماتیک)
- نوع طراحی: Think Top (هد باریک برای نصب در فضاهای محدود)
- نوع اتصال: Tri-Clamp (TC) یا Welded بسته به نیاز مشتری
- سایزها: از 1 اینچ تا 4 اینچ
- فشار کاری: 10 بار (145 psi)
- دمای کاری: -10 تا +140 درجه سانتیگراد
- عملگر پنوماتیکی: Single-Acting
- قابلیت تغییر به وضعیت Normally Open (NO): با معکوس کردن موقعیت عملگر پنوماتیکی
متریالهای قابل ارائه (شیر آن و آف )Pneumatic shut-off
- بدنه: استنلس استیل 316L / 316
- واشرها و سیلها: EPDM، PTFE، و FKM (مطابق با استانداردهای FDA)
- واشر با پروفایل خاص که اطمینان از کارکرد قابل اعتماد در شرایط کاری نامساعد را تضمین میکند.
- طراحی بهداشتی واشر برای شستشوی بهینه
برندهای موجود
- ALFA LAVAL
- ALFA
- INOXPA --B&G
کاربردهای صنعتی divert valve استنلس استیل :
- صنایع دارویی (GMP)
- صنایع لبنی و غذایی
- صنایع نوشیدنی
- سیستمهای انتقال سیالات بهداشتی
مزایا و ویژگیها
✅ طراحی بهداشتی طبق EHEDG برای اطمینان از رعایت بالاترین استانداردهای بهداشتی
✅ طراحی واشر بهداشتی که تضمینکننده شستوشوی بهینه و جلوگیری از آلودگی است
✅ عملگر پنوماتیکی تکعمله برای کنترل دقیق مسیر سیال
✅ قابلیت تغییر به وضعیت Normally Open (NO) با معکوس کردن عملگر پنوماتیکی
✅ آسانی در مونتاژ و دمونتاژ قطعات داخلی با شل کردن بستهای کلیپسی
✅ چراغ باز برای بازرسی بصری مهر و موم شفت
✅ بدنه 360 درجه قابل تنظیم برای نصب و استفاده راحت در فضاهای مختلف
استانداردها
✔ 3A، FDA، ASME BPE
✔ قابلیت استفاده در خطوط بهداشتی مطابق با GMP
نکات نصب و نگهداری
- قبل از نصب، از تمیزی سطوح داخلی شیر اطمینان حاصل کنید.
- جهت عملکرد بهینه، از تنظیمات مناسب برای فشار پنوماتیک استفاده شود.
- برای افزایش طول عمر، از نگهداری و تمیزکاری دورهای با روشهای CIP/SIP استفاده کنید.
- قطعات داخلی به راحتی قابل مونتاژ و دمونتاژ هستند که فرآیند نگهداری را آسانتر میکند.
اطلاعات تماس و خرید
مدنظر داشته باشید این محصول به سفارش مشتری در کشور چین تولید و سپس وارد کشور و تحویل مشتری میشود .
فروشگاه بنیاد استیل تأمینکنندهی انواع تجهیزات بهداشتی استنلس استیل از برندهای معتبر بینالمللی.
📍 آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 تلفن: 33922432
💬 برای استعلام دقیق قیمت، لطفاً بر روی آیکون واتساپ در همین صفحه کلیک کنید و قیمت آنی دریافت بفرمایید.
