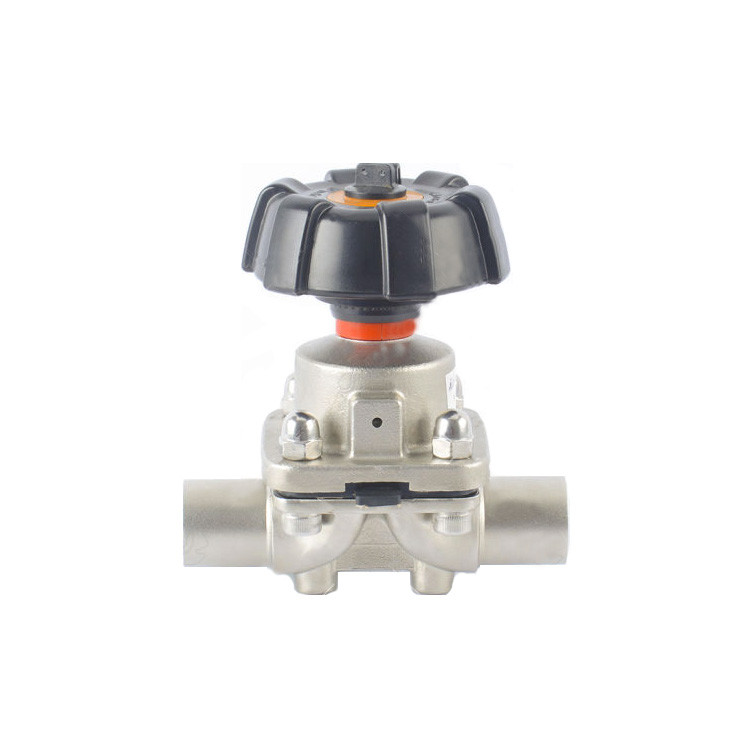

شیر دیافراگم جوشی استنلس استیل صنایع دارویی 316

Stainless Steel 316 Welded Diaphragm Valve for Pharmaceutical Industries

Introduction to Stainless Steel 316 Welded Diaphragm Valve

The Stainless Steel 316 Welded Diaphragm Valve is an essential component in pharmaceutical, food, and hygienic industries, designed for precise control of sterile and high-purity fluids. Its Butt Weld connection minimizes dead zones in piping systems, ensuring superior hygiene and compliance with GMP standards. The body is made of 316L stainless steel with a mirror-polished surface, providing excellent corrosion resistance and minimal contamination risk.

Technical Specifications of Stainless Steel Welded Diaphragm Valve

• Body Material: Stainless Steel 316L with mirror-polished surface
• Connection Type: Butt Weld
• Operation Mechanism: Manual or Pneumatic
• Diaphragm Material: EPDM / PTFE / Silicone (FDA Approved)
• Working Pressure: Up to 10 bar (145 psi)
• Available Sizes: From 1/2 inch to 4 inches
• Compliance with Standards: GMP, ASME BPE, FDA

Applications of Welded Diaphragm Valve in Various Industries

This Stainless Steel Welded Diaphragm Valve is widely used in:

• Pharmaceutical Industry (for sterile fluid transfer and precise flow control)
• Food & Dairy Industry (handling beverages and dairy products)
• Biotechnology & Chemical Processing (for contamination-sensitive applications)

Advantages of Stainless Steel 316 Welded Diaphragm Valve

✔️ Hygienic design with minimal dead zones to prevent fluid contamination
✔️ High corrosion resistance due to 316L stainless steel construction
✔️ Seamless welding for enhanced durability and leak-proof operation
✔️ Compatible with CIP and SIP cleaning processes for maximum sterility
✔️ Long service life with minimal maintenance requirements

Standards and Certifications

This Stainless Steel 316 Welded Diaphragm Valve meets international standards:

• ASME BPE (Pharmaceutical Piping Standard)
• GMP (Good Manufacturing Practice Compliance)
• FDA Approved (Safe for food and pharmaceutical applications)

Important Installation and Maintenance Notes

• Use stainless steel welding rods suitable for sanitary applications.
• Regularly inspect and replace the diaphragm to maintain optimal performance.
• Ensure working pressure and temperature comply with the valve’s specifications.

Available Brands at Bonyad Steel

✔️ ALFA
✔️ Gemu
✔️ ALFA LAVAL

Technical Specification Table

Purchase Stainless Steel 316 Welded Diaphragm Valve from Bonyad Steel

Due to currency fluctuations and real-time price changes of stainless steel products, please click on the WhatsApp icon on this page to get an instant price quote for the Stainless Steel 316 Welded Diaphragm Valve.

📍 Address: Tehran, Khayam North Street, Opposite Park-e Shahr, Grand Khayam Passage, First Floor, Unit 180
