شیر سوزنی فلنجدار کلاس 150 -KITZ-316

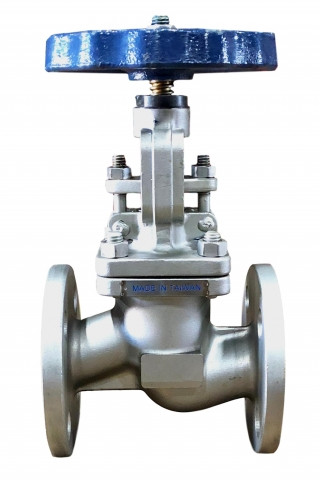

KITZ Class 150 Flanged Needle Valve - Stainless Steel 316 (CF8M)

Introduction and Application of Flanged Needle Valve

The KITZ Class 150 Flanged Needle Valve is an essential component in industrial piping systems, designed for precise flow control. Its needle-shaped disc allows gradual and accurate adjustment of flow rate, making it ideal for industries such as oil and gas, petrochemicals, pharmaceuticals, and food processing.

Features and Technical Specifications

• Brand: KITZ
• Material: Stainless Steel 316 (CF8M)
• Pressure Class: 150 (ANSI Class 150)
• Connection Type: Flanged
• Flange Standard: ASME B16.5
• Design Standard: API 602
• Operating Mechanism: Rotating handwheel with a needle disc for precise flow control
• Operating Temperature: -29°C to 250°C (depending on the fluid type)

CF8M Alloy and Its Advantages

This valve is made from CF8M stainless steel, the cast equivalent of SS316. The molybdenum (Mo) content in CF8M enhances its resistance to corrosion, oxidation, and chemical attack. Compared to CF8, CF8M offers superior resistance to acids and chlorides, making it ideal for highly demanding industrial environments.

Compliance with API 602 Standard

This valve conforms to API 602, a standard specifically designed for small, high-pressure industrial valves. Compliance with API 602 ensures durability, reliability, and optimal performance under extreme conditions.

Advantages of KITZ Flanged Needle Valve

✔ Precise Flow Control: Needle-shaped disc allows fine adjustment of fluid flow.
✔ Excellent Corrosion Resistance: CF8M material ensures long-term durability in harsh environments.
✔ Long Service Life: Engineered for high performance according to API 602 standards.
✔ Easy Installation: Standard flanged connections facilitate quick and secure installation.

Applications in Various Industries

✅ Oil & Gas: Flow regulation of hydrocarbons.
✅ Petrochemical: Precise control of chemical substances.
✅ Pharmaceutical: Suitable for sensitive fluid systems.
✅ Food & Beverage: Hygienic stainless steel surface for sanitary processing.
✅ Steam & Industrial Fluids: Used in heating and cooling processes.

Technical Specifications Table

Pressure, Dimensions & Temperature Table

Installation and Maintenance Tips

• Ensure the pipeline is clean and free from debris before installation.
• Use the appropriate gasket at the flange connection to prevent leakage.
• Periodically inspect the valve's functionality and perform maintenance as needed.
