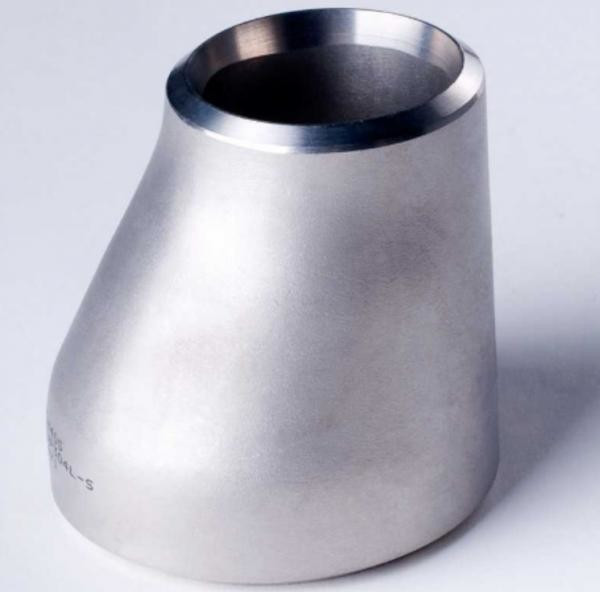

تبدیل کج (غیرهم مرکز) جوشی مانیسمان استنلس استیل 316
آلیاژ:
316
آلیاژ بدنه:
316
ابعاد
3/4 تا 24 اینچ
اتصال
جوشی
استاندارد
A312
برند:
Ernefittings -SPA
ضخامت
SCH10/40/80
تیپ :
کج /غیر هم مرکز
Eccentric Butt Weld Reducer Seamless Stainless Steel 316 A312 Ernefittings
Introduction and Function of Eccentric Butt Weld Reducer
The eccentric butt weld reducer seamless stainless steel is one of the most essential welded fittings in industrial piping systems, used to reduce the pipe size in fluid transfer systems. This type of reducer is designed so that the axis of the inlet and outlet pipes is not aligned, making it ideal for applications requiring smooth fluid flow without sudden pressure drops.
Technical Specifications of Eccentric Butt Weld Reducer
- Material: Stainless Steel 316, compliant with ASTM A312
- Connection Type: Butt Weld
- Manufacturing Type: Seamless (Mannesmann)
- Brand: Ernefittings
- Dimensional Standards: ASME B16.9
- Corrosion-resistant, suitable for harsh industrial environments
Available Materials and Alloys
Eccentric butt weld reducers are available in various materials, with the most common being:
- Stainless Steel 316 & 316L
- Stainless Steel 304 & 304L
- Special alloys based on project requirements
Applications of Eccentric Butt Weld Reducer
- Oil, Gas, and Petrochemical Industries
- Pharmaceutical and Sanitary Industries
- Food and Dairy Industries
- Power Plants and Thermal Facilities
- Industrial Piping Systems
Advantages of Seamless Stainless Steel Butt Weld Reducer
- High resistance to pressure and temperature
- No leakage due to seamless structure (Mannesmann)
- Long service life with reduced maintenance costs
- Easy and flawless welding capability
Standards and Technical Requirements
The eccentric stainless steel butt weld reducer is manufactured and supplied in accordance with international standards, including:
- ASME B16.9 (Dimensional Standard)
- ASTM A312 (Material Standard)
- DIN & EN (European Standards)
Technical and Dimensional Specification Table
| Inlet Size (Inch) | Outlet Size (Inch) | Thickness (SCH) | Standard | Brand |
|---|---|---|---|---|
| 3" | 2" | SCH 10/40 | ASME B16.9 | Ernefittings |
| 4" | 2.5" | SCH 10/40 | ASME B16.9 | Ernefittings |
| 6" | 4" | SCH 10/40 | ASME B16.9 | Ernefittings |
Important Notes on Installation and Maintenance
- Before installation, inspect the internal and external surfaces for cleanliness.
- Use standard welding methods to prevent mechanical stresses.
- In chemical environments, periodic inspections are necessary to prevent corrosion.
⚠ Due to exchange rate fluctuations and real-time price changes of stainless steel products, please click on the WhatsApp icon on this page to receive an instant price quote.
📍 Bonyad Steel Store
Address: Tehran, Khayyam Shomali St., Opposite Park-e Shahr, Grand Khayyam Passage, First Floor, No. 180
تبدیل کج (غیر هم مرکز) جوشی مانیسمان استنلس استیل 316 A312 Ernefittings
معرفی و کارکرد تبدیل جوشی کج (غیر هم مرکز)
تبدیل جوشی کج (غیر هم مرکز) مانیسمان استنلس استیل یکی از مهمترین اتصالات جوشی در خطوط لوله صنعتی است که برای کاهش سایز لوله در سیستمهای انتقال سیالات استفاده میشود. این نوع تبدیل بهگونهای طراحی شده که محور لوله ورودی و خروجی همراستا نبوده و معمولاً در کاربردهایی که نیاز به تغییر مسیر سیال بدون ایجاد افت فشار ناگهانی دارند، استفاده میشود.
مشخصات فنی تبدیل جوشی غیر هم مرکز مانیسمان استیل :
- جنس: استنلس استیل 316 مطابق با استاندارد ASTM A312
- نوع اتصال: جوشی (Butt Weld)
- نوع تولید: مانیسمان (بدون درز)
- برند: Ernefittings
- استانداردهای ابعادی: مطابق با ASME B16.9
- مقاوم در برابر خوردگی و زنگزدگی، مناسب برای محیطهای خورنده و صنعتی
متریال و آلیاژهای قابل ارائه
تبدیل جوشی کج غیر هم مرکز در متریالهای مختلفی ارائه میشود که پرکاربردترین آنها شامل:
- استنلس استیل 316 و 316L
- استنلس استیل 304 و 304L
- آلیاژهای خاص بر اساس نیاز پروژه
کاربردهای تبدیل جوشی کج (غیر هم مرکز) استنلس استیل
- صنایع نفت، گاز و پتروشیمی
- صنایع دارویی و بهداشتی
- صنایع غذایی و لبنی
- نیروگاهها و تأسیسات حرارتی
- سیستمهای پایپینگ صنعتی
مزایای تبدیل جوشی مانیسمان استنلس استیل
- مقاومت بالا در برابر فشار و دما
- عدم ایجاد نشتی به دلیل ساختار بدون درز (مانیسمان)
- طول عمر بالا و کاهش هزینههای تعمیر و نگهداری
- قابلیت جوشکاری آسان و بدون نقص
استانداردها و الزامات فنی
تبدیل جوشی غیر هم مرکز استنلس استیل بر اساس استانداردهای بینالمللی تولید و عرضه میشود که شامل:
- ASME B16.9 (استاندارد ابعادی)
- ASTM A312 (استاندارد متریال)
- DIN و EN (استانداردهای اروپایی)
جدول مشخصات فنی و ابعادی
| سایز ورودی (اینچ) | سایز خروجی (اینچ) | ضخامت (SCH) | استاندارد | برند |
|---|---|---|---|---|
| 3" | 2" | SCH 10/40 | ASME B16.9 | Ernefittings |
| 4" | 2.5" | SCH 10/40 | ASME B16.9 | Ernefittings |
| 6" | 4" | SCH 10/40 | ASME B16.9 | Ernefittings |
نکات مهم درباره نصب و نگهداری تبدیل جوشی :
- پیش از نصب، سطح داخلی و بیرونی تبدیل بررسی و از تمیزی آن اطمینان حاصل شود.
- استفاده از روشهای جوشکاری استاندارد برای جلوگیری از تنشهای مکانیکی توصیه میشود.
- در محیطهای دارای مواد شیمیایی، بررسیهای دورهای برای جلوگیری از خوردگی ضروری است.
⚠ به دلیل نوسانات ارزی و تغییر لحظهای قیمت تبدیل کج استنلس استیل، لطفاً برای استعلام دقیق قیمت بر روی آیکون واتساپ در همین صفحه کلیک کنید و قیمت آنی دریافت بفرمایید.
📍 فروشگاه بنیاد استیل
آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 شماره تماس: 33922432
