شیر انگل ولو (زاویه ای) کلمپی پنوماتیک استنلس استیل ۳۱۶ صنایع دارویی

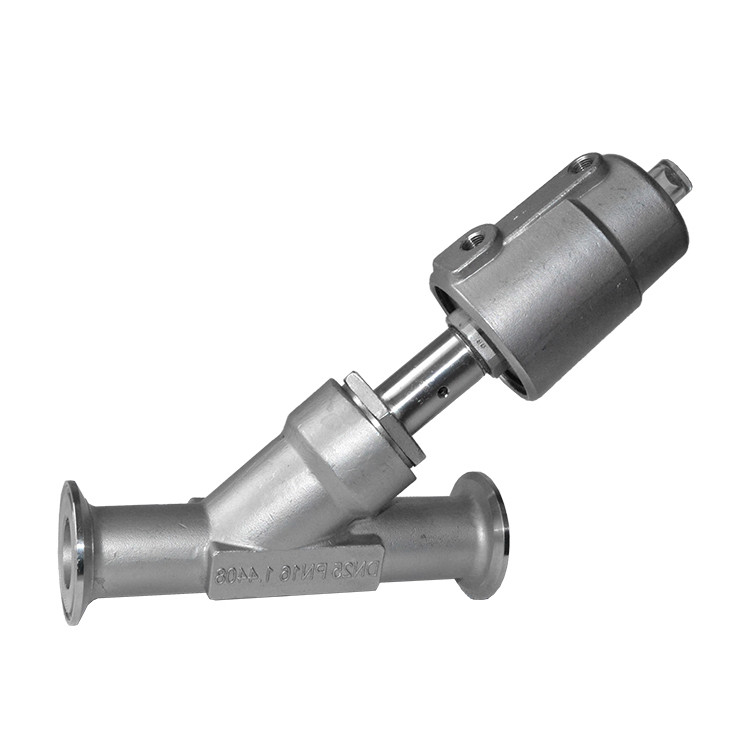

Pneumatic Angle Seat Valve – Normal Close (Tri-Clamp) Stainless Steel 316 for Pharmaceutical Industries

Introduction and Functionality

The Pneumatic Angle Seat Valve (Tri-Clamp) Stainless Steel 316 is a highly efficient control valve widely used in pharmaceutical, hygienic, food, and dairy industries. Due to its angled design and pneumatic operation, this valve provides precise control of liquids and gases in process lines. The Normal Close model remains closed under normal conditions and opens only when a pneumatic signal is applied.

Technical Specifications

• Body Material: Stainless Steel 316L (corrosion-resistant and ideal for hygienic environments)
• Diaphragm & Seal Material: PTFE (high resistance to chemicals and high temperatures)
• Connection Type: Tri-Clamp
• Operation Type: Pneumatic - Normal Close
• Maximum Working Pressure: Up to 10 bar (145 psi) depending on the size
• Operating Temperature: -20 to +180°C

Available Materials

This product is made from 316L stainless steel, featuring a polished surface in compliance with GMP standards, making it highly suitable for pharmaceutical and hygienic applications.

Available Brands

• ALFA
• ASSP
• Alfa Laval

Applications in Various Industries

• Pharmaceutical and biotechnology production lines
• Food and dairy industries
• Sterile and hygienic equipment
• Steam and liquid processing systems

Standards and Special Features

• Hygienic design compliant with GMP
• Polished inner and outer surfaces to minimize contamination
• Easy installation and maintenance with Tri-Clamp connection
• High resistance to wear, corrosion, and high temperatures

Technical Specifications Table

Dimensions and Sizing Table

Important Installation and Maintenance Notes

• Ensure that connection surfaces and the valve are clean before installation.
• Proper installation following the manufacturer’s guidelines is essential to prevent pressure drops and malfunctions.
• The diaphragm and internal valve components should be periodically inspected and replaced if necessary.
