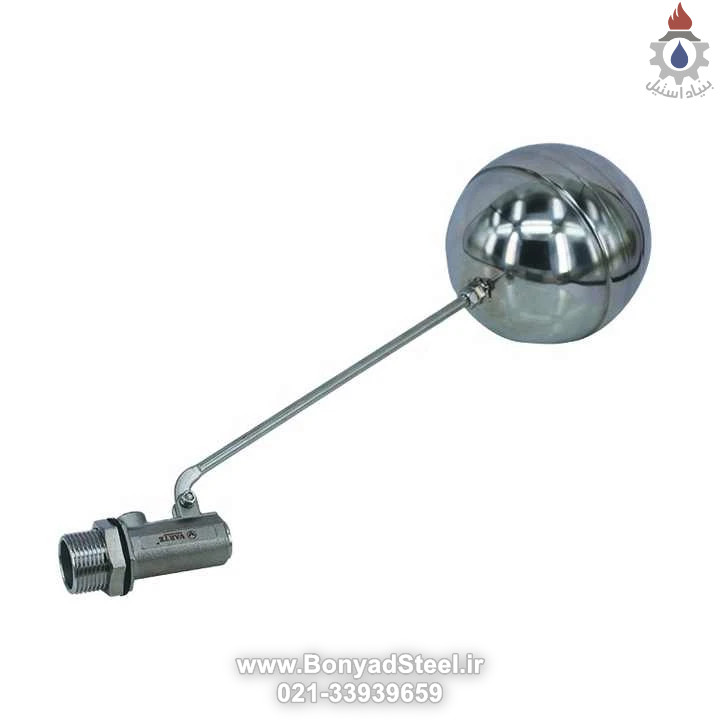

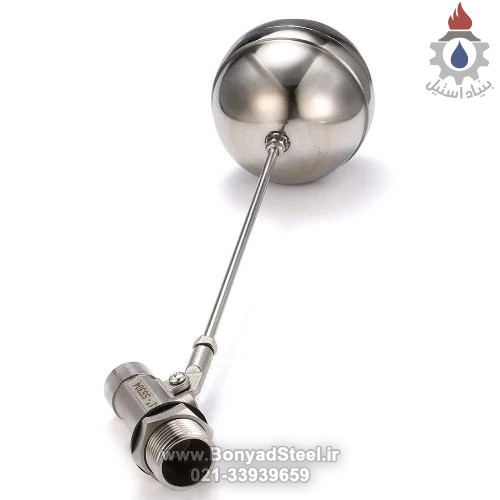

شیر فلوتر استنلس استیل ۳۰۴ رزوه ای
اندازه
۱/۲ اینچ الی ۲ اینچ
اتصال
رزوه NPT
آببند
پلاستیکی
فشار کاری
10 بار
متریال
۳۰۴- ۳۱۶
Stainless Steel Float Valve
The stainless steel float valve is an automatic flow control device used to regulate liquid levels in tanks and reservoirs. Designed with high-quality stainless steel, this float valve ensures durability, corrosion resistance, and reliable performance in various industrial applications, including food processing, pharmaceuticals, and water treatment systems.
Technical Specifications
- Material: High-grade stainless steel 304/316 for superior corrosion resistance
- Connection Type: Threaded (NPT/BSP) or Tri-Clamp (TC end) for easy installation
- Working Pressure: Up to 10 bar
- Sizes Available: Starting from 1/2 inch
- Application: Suitable for pharmaceutical, food, dairy, beverage, and water industries
Importance of Surface Polishing in Hygienic Industries
For pharmaceutical and food industries, surface finish quality is crucial in preventing contamination and ensuring compliance with hygiene standards. This float valve features an internal surface roughness (Ra) below 0.4 microns and an external surface roughness below 0.8 microns, in line with GMP and FDA requirements. The high-polish finish reduces bacterial buildup, enhances cleanability, and ensures a long-lasting, sanitary operation.
Advantages of Stainless Steel Float Valve
✔ Corrosion-Resistant – Suitable for harsh environments and chemical exposure
✔ Hygienic Design – Complies with sanitary standards for pharmaceutical and food applications
✔ Automatic Liquid Level Control – Maintains precise water or liquid levels
✔ Smooth & Polished Surface – Prevents bacterial growth and ensures easy cleaning
✔ Durable & Long-Lasting – Made from high-quality stainless steel
Available Brands
🔹 ALFA
🔹
Applications in Various Industries
🔹 Pharmaceutical & Biotechnology: Sterile liquid storage and processing
🔹 Food & Beverage: Milk, juice, and liquid ingredient storage tanks
🔹 Dairy Industry: Hygienic liquid level control systems
🔹 Water Treatment: Industrial and potable water regulation
📌 Due to currency fluctuations and the dynamic pricing of stainless steel products, please click on the WhatsApp icon on this page for real-time price inquiries.
📍 Bonyad Steel Store Address: Tehran, North Khayyam St., Opposite Park-e Shahr, Grand Khayyam Passage, 1st Floor, Unit 180
Let me know if you need any modifications or additional details!
|
Commodity |
Float Ball Valve |
|
|
Component |
Valve Body, Valve Cap, Seal, Plug, Rod, Ball, Nut |
|
|
Type of Float Ball Valve |
Stainless Steel Float Ball Valve |
|
|
Small Hole Float Ball Valve |
||
|
Plastic Float Ball Valve |
||
|
Design Type |
Levered Type, Straight Through |
|
|
Material Contact Parts |
SS304(1.4301),SS316 (1.4401),Brass,SS201 |
Provided with material inspection report |
|
Material Non-contact Parts |
SS304(1.4301),SS201 |
|
|
Sealing Material |
NBR,EPDM,Silicone,FKM. All material comply with FDA21CFR117.2600 |
|
|
Connection Size |
DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN100 |
|
|
Ball Size |
95mm,135mm,150mm,225mm,250mm,280mm,300mm |
|
|
Connection |
Screw Thread, Tri-clamp,Flange |
|
|
Max. Pressure |
16bar (232psi) |
|
|
Workingl Pressure |
6bar (87psi) |
|
|
Design Temperature |
-4 ~ +392°F (-20℃~+200 ℃) |
|
|
Rotation Angle |
360° |
|
|
Drive Mode |
Hydraulic Control |
|
|
Flow Direction |
Single One-way |
|
|
Media |
Water |
|
|
Customized Support |
OEM,OED |
|
Float ball valve is a valve composed of curved arms and floating balls, which can be used to automatically control the liquid level of a water tower or pool.
Float ball valve is a ball without a supporting shaft, which is held in a "floating" state by two valve seats. It is mainly used for cutting, distributing, and changing the direction of medium flow in pipelines. Floating ball valves mainly have structural features such as valve seat sealing design, reliable reverse sealing valve stem, fire and static electricity prevention function, automatic pressure relief and locking device.
Application
Float ball valves are suitable for industries such as food, chemical, petroleum, natural gas, metallurgy, as well as natural gas long-distance pipelines containing hydrogen sulfide, impurities, and severe corrosion.
Working principle
The float always needs to float on the water, and when the water rises, the float also rises. When the float rises, it drives the connecting rod to also rise. The connecting rod is connected to the valve at the other end, and when it rises to a certain position, the connecting rod supports a rubber piston pad to seal off the water source. When the water level drops, the float also drops, and the connecting rod drives the piston pad to open.
Float valves regulate the liquid supply by controlling the liquid level. A full liquid evaporator requires the liquid level to maintain a certain height, and it is generally suitable to use a floating ball expansion valve. The working principle of a float valve is to control the opening or closing of a valve by lowering and raising the float ball in the float chamber under the action of the liquid level. The floating ball chamber is placed on one side of the full liquid evaporator, and the upper and lower parts are connected to the evaporator through a balance tube, so the liquid level height of the two is the same. When the liquid level in the evaporator drops, the liquid level in the floating ball chamber also drops, so the floating ball drops and relies on the lever to increase the valve opening and increase the liquid supply. vice versa.
فلوتر استنلس استیل ۳۰۴
floating valve stainless steel 304
شیر فلوتر استنلس استیل(floating valve ) 304 رزوه NPT با برند ALFA، یک شیر صنعتی است که بهطور گسترده در سیستمهای صنعتی مختلف برای کنترل جریان مایعات و گازها بهکار میرود. این شیر بهویژه در صنایعی که نیاز به کنترل فشار و جریان دقیق دارند، مورد استفاده قرار میگیرد. ساختار استنلس استیل 304 این شیر باعث افزایش مقاومت آن در برابر خوردگی و زنگزدگی، بهویژه در محیطهای مرطوب و با شرایط سخت کاری میشود.
اطلاعات فنی محصول:
- جنس بدنه: استنلس استیل 304
- رزوه: NPT (National Pipe Thread)
- نوع عملکرد: شیر فلوتر برای تنظیم و کنترل جریان سیالات
- دمای کاری: مناسب برای دماهای بالا و پایین (محدوده دمایی خاص برای استفاده در صنایع مختلف)20℃ to 170℃
- سایزهای موجود: از 1/2 اینچ به بالا
- حداکثر فشار کاری: 10 بار (بدون افت فشار شدید)
متریالهای قابل ارائه:
- استنلس استیل 304
- مواد مقاوم در برابر خوردگی و شرایط محیطی سخت
برندهای موجود:
- ALFA (برند اصلی و معتبر در زمینه تولید شیرآلات صنعتی)
کاربردهای محصول در صنایع مختلف:
- صنعت پتروشیمی: برای تنظیم فشار در خطوط انتقال گاز و مایعات
- صنعت داروسازی: برای کنترل دقیق جریان مواد شیمیایی و دارویی
- صنعت آب و فاضلاب: برای نظارت و کنترل جریان آب در سیستمهای تصفیه
- صنعت غذایی: برای تنظیم جریان مایعات در فرآیندهای تولید و بستهبندی مواد غذایی
- صنعت نفت و گاز: برای کاربرد در خطوط انتقال نفت و گاز و سیستمهای فرایندی
جدول فشار کاری (بار و psi)، ابعاد و سایزها:
| سایز | فشار کاری (بار) | فشار کاری (psi) | ابعاد (میلیمتر) |
|---|---|---|---|
| 1/2 اینچ | 10 بار | 145 psi | 120 × 60 × 60 |
| 3/4 اینچ | 10 بار | 145 psi | 140 × 70 × 70 |
| 1 اینچ | 10 بار | 145 psi | 160 × 80 × 80 |
| 2 اینچ | 10 بار | 145 psi | 200 × 100 × 100 |
مزایا و معایب شیر شناور استنلس استیل :
مزایا:
- مقاوم در برابر خوردگی و شرایط محیطی سخت
- عملکرد دقیق و پایدار در کنترل جریان
- نصب و راهاندازی آسان
- طول عمر بالا و نگهداری کمهزینه
- مناسب برای صنایع حساس
معایب:
- حساس به فشارهای بالاتر از حداکثر مجاز
- نیاز به بررسی دورهای برای جلوگیری از انسداد
پروسه تولید محصول:
شیر فلوتر (شیر شناور)استنلس استیل 304 با استفاده از فناوریهای پیشرفته تولید میشود. این شیرها با دقت بالا و مطابق با استانداردهای جهانی در کارخانههای معتبر برند ALFA ساخته میشوند. مراحل تولید شامل برش، جوشکاری، پرداخت نهایی و آزمایش فشار برای اطمینان از عملکرد صحیح است.
استانداردهای ابعادی و آلیاژی بینالمللی شناور استیل :
- مطابق با استانداردهای ASME B16.5 برای ابعاد و فشار
- سازگار با استانداردهای ASTM A276 برای آلیاژ استنلس استیل 304
- مطابق با استانداردهای جهانی برای کیفیت و عملکرد
نکات مهم درباره نصب و نگهداری شیر شناور استنلس استیل :
- نصب: نصب شیر فلوتر استیل باید توسط متخصصان ماهر انجام شود. توصیه میشود از واشرهای مقاوم و رزوههای مناسب برای جلوگیری از نشت استفاده شود.
- نگهداری: شیر باید بهطور منظم بررسی شود تا از بروز مشکلاتی مانند انسداد یا خرابی جلوگیری شود. تمیزکاری و سرویسدهی دورهای از اهمیت ویژهای برخوردار است.
- آزمایش فشار: پس از نصب، فشار سیستم باید بررسی شود تا از تطابق آن با مشخصات فنی شیر اطمینان حاصل شود.
برای تهیه ی گوی استیل جداگانه مخصوص فلوتر استیل با ما در تماس باشید.
