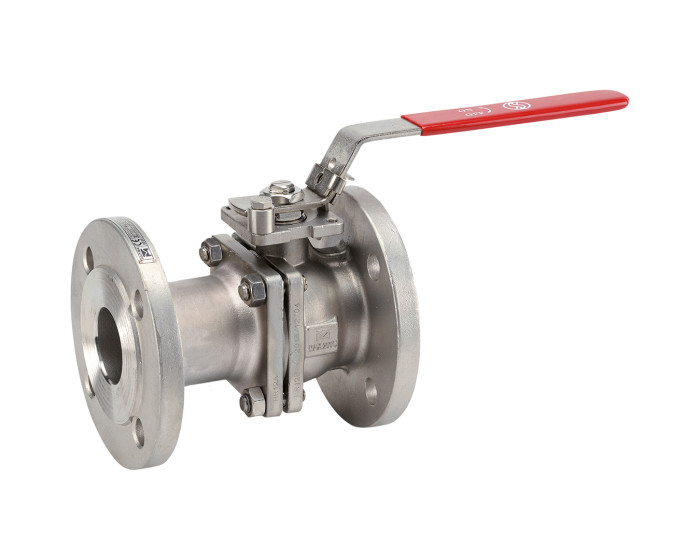

شیر توپی بال ولو فلنج دار استنلس استیل PN16-316-KITZ
آببند
PTFE--RPTFE
آلیاژ:
CF8M--316
ابعاد
1/2 - 8 inch
اتصال
فلنجی flanged
استاندارد
API600
برند:
KITZ
تیپ :
2pc
فشار کاری
PN16
Ball Valve Flanged PN16-316-KITZ (Raised Face)
Introduction and Application: The PN16-316-KITZ flanged ball valve is one of the most commonly used industrial valves in fluid transfer systems. Due to its unique design and the use of stainless steel 316, it offers high resistance to corrosion and pressure. This valve is suitable for industries such as oil, gas, petrochemicals, food, and pharmaceuticals, especially in high-humidity environments and for handling corrosive fluids.
PN16 Standard and Its Advantages: The PN (Pressure Nominal) standard is a European pressure rating system used in piping and mechanical equipment.
- PN16 indicates a maximum working pressure of 16 bar at a standard temperature of 20°C.
- This standard is widely used in industrial and utility applications due to its compatibility with metric systems and German (DIN) and European (EN) standards.
- PN16 flanges are commonly used in water, steam, air, and industrial fluid systems that require medium pressure handling.
Advantages of PN16 Over Class 150: Class 150, defined under ANSI/ASME B16.5, has a maximum working pressure of 19.6 bar at 20°C, which is nearly equivalent to PN16. However, there are key differences between these two standards:
- Compatibility with European and Metric Systems: PN16 flanges are more common in European industrial piping systems, whereas Class 150 is primarily used in American systems.
- Flange Design and Dimensions: Differences in bolt hole size, bolt hole spacing, and overall flange dimensions make PN16 and Class 150 non-interchangeable.
- Precision and Compliance with Modern Industrial Systems: PN16 valves are often more precisely engineered and standardized, offering better performance and safety in some applications.
Technical Specifications:
- Body Material: Stainless Steel 316 (316 SS)
- Pressure Rating: PN16
- Connection Type: Flanged (Raised Face)
- Internal Structure: Ball valve with fast operation and excellent sealing performance
- Operating Temperature Range: Up to 180°C (depending on fluid and operating conditions)
- Applications: Suitable for transferring corrosive fluids, water, steam, chemicals, and industrial processes
Standard Pressure and Dimension Tables (DIN EN 1092-1):
PN16 Pressure Ratings Based on DIN EN 1092-1
| Temperature (°C) | Working Pressure (Bar) |
|---|---|
| 20 | 16 |
| 100 | 13 |
| 200 | 11 |
| 300 | 9 |
| 400 | 7 |
PN16 Flange Dimensions Based on DIN EN 1092-1
| Nominal Size (DN) | Flange Diameter (mm) | Number of Bolt Holes | Bolt Hole Diameter (mm) | Bolt Hole Center-to-Center Distance (mm) |
|---|---|---|---|---|
| 15 | 95 | 4 | 14 | 65 |
| 25 | 115 | 4 | 14 | 85 |
| 50 | 165 | 4 | 18 | 125 |
| 100 | 220 | 8 | 18 | 180 |
| 150 | 285 | 8 | 22 | 240 |
| 200 | 340 | 12 | 22 | 295 |
Advantages of PN16-316-KITZ Flanged Ball Valve:
- High corrosion resistance due to stainless steel 316
- Quick and easy operation with a 90-degree turn mechanism
- Simple installation and maintenance
- Compliance with international DIN and EN standards
- Strong sealing performance, preventing fluid leakage
Bonyad Steel is ready to manufacture and supply this product (PN16-316-KITZ Flanged Ball Valve) in China according to customer specifications and deliver it via sea or air freight.
📍 Store Address: Tehran, North Khayyam Street, Opposite Park-e Shahr, Grand Khayyam Passage, First Floor, Unit 18ظ ]
شیر توپی بال ولو فلنج دار استنلس استیلPN16-316-KITZ (Raised Face)
معرفی و کاربرد: شیر توپی فلنج دار PN16-316-KITZ یکی از پرکاربردترین انواع شیرهای صنعتی در سیستمهای انتقال سیالات است که به دلیل طراحی خاص و استفاده از آلیاژ استنلس استیل 316، مقاومت بالایی در برابر خوردگی و فشار دارد. این شیر برای صنایع نفت، گاز، پتروشیمی، صنایع غذایی و دارویی مناسب بوده و بهویژه در محیطهای دارای رطوبت بالا و سیالات خورنده عملکرد ایدهآلی دارد.
استاندارد PN16 و دلایل استفاده از آن: استاندارد PN (Pressure Nominal) یک استاندارد اروپایی برای فشار کاری تجهیزات تحت فشار است که در سیستمهای لولهکشی و تجهیزات مکانیکی به کار میرود.
- PN16 نشاندهنده حداکثر فشار کاری 16 بار (Bar) در دمای استاندارد 20 درجه سانتیگراد است.
- این استاندارد در بسیاری از کاربردهای صنعتی و تاسیساتی به دلیل سازگاری با سیستمهای متریک و استانداردهای آلمانی (DIN) و اروپایی (EN) استفاده میشود.
- فلنجهای PN16 معمولاً در سیستمهای آب، بخار، هوا و سیالات صنعتی که فشار متوسطی دارند، مورد استفاده قرار میگیرند.
برتری PN16 نسبت به کلاس 150: کلاس 150 که بر اساس استاندارد ANSI/ASME B16.5 تعریف شده است، دارای حداکثر فشار کاری 19.6 بار در دمای 20 درجه سانتیگراد است که تقریباً مشابه PN16 است، اما تفاوتهای کلیدی بین این دو استاندارد وجود دارد:
- سازگاری با استانداردهای اروپایی و متریک: فلنجهای PN16 در سیستمهای لولهکشی صنعتی اروپا کاربرد بیشتری دارند، درحالیکه کلاس 150 عمدتاً در سیستمهای آمریکایی رایج است.
- طراحی و ابعاد فلنج: تفاوت در اندازه پیچها، فاصله بین پیچها و ابعاد کلی فلنج باعث میشود که PN16 و کلاس 150 قابل تعویض نباشند.
- دقت و تطابق با سیستمهای صنعتی مدرن: شیرهای PN16 به دلیل طراحی مهندسی دقیقتر و استانداردسازی بهتر، در برخی موارد عملکرد و ایمنی بیشتری نسبت به کلاس 150 دارند.
مشخصات فنی:
- جنس بدنه: استنلس استیل 316 (316 Stainless Steel)
- استاندارد فشار: PN16
- نوع اتصال: فلنج دار (Raised Face)
- ساختار داخلی: بال ولو (Ball Valve) با مکانیزم عملکرد سریع و آببندی عالی
- محدوده دمایی کاری: تا 180 درجه سانتیگراد (بسته به سیال و شرایط عملیاتی)
- کاربردها: انتقال سیالات خورنده، آب، بخار، مواد شیمیایی و فرآیندهای صنعتی
جداول استاندارد فشار و ابعاد آلمانی:
جدول فشار PN16 بر اساس استاندارد DIN EN 1092-1
| دما (°C) | فشار کاری (Bar) |
|---|---|
| 20 | 16 |
| 100 | 13 |
| 200 | 11 |
| 300 | 9 |
| 400 | 7 |
جدول ابعاد فلنج PN16 بر اساس استاندارد DIN EN 1092-1
| سایز اسمی (DN) | قطر فلنج (mm) | تعداد سوراخ پیچ | قطر سوراخ پیچ (mm) | فاصله مرکز به مرکز سوراخ پیچ (mm) |
|---|---|---|---|---|
| 15 | 95 | 4 | 14 | 65 |
| 25 | 115 | 4 | 14 | 85 |
| 50 | 165 | 4 | 18 | 125 |
| 100 | 220 | 8 | 18 | 180 |
| 150 | 285 | 8 | 22 | 240 |
| 200 | 340 | 12 | 22 | 295 |
مزایای شیر توپی بال ولو فلنج دار PN16-316-KITZ:
- مقاومت بالا در برابر خوردگی به دلیل استفاده از استنلس استیل 316
- عملکرد سریع و ساده با مکانیزم چرخش 90 درجه
- نصب و نگهداری آسان
- تطابق با استانداردهای بینالمللی DIN و EN
- آببندی قوی و جلوگیری از نشتی سیالات
فروشگاه بنیاد استیل آمادگی این را دارد که این محصول (شیر توپی بال ولو فلنج دار PN16-316-KITZ) را در کشور چین به درخواست و نیاز متفاوت مشتری بهصورت سفارشی تولید و بهصورت دریایی و یا هوایی ارسال کند.
📍 آدرس فروشگاه: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 شماره تماس:33922432
