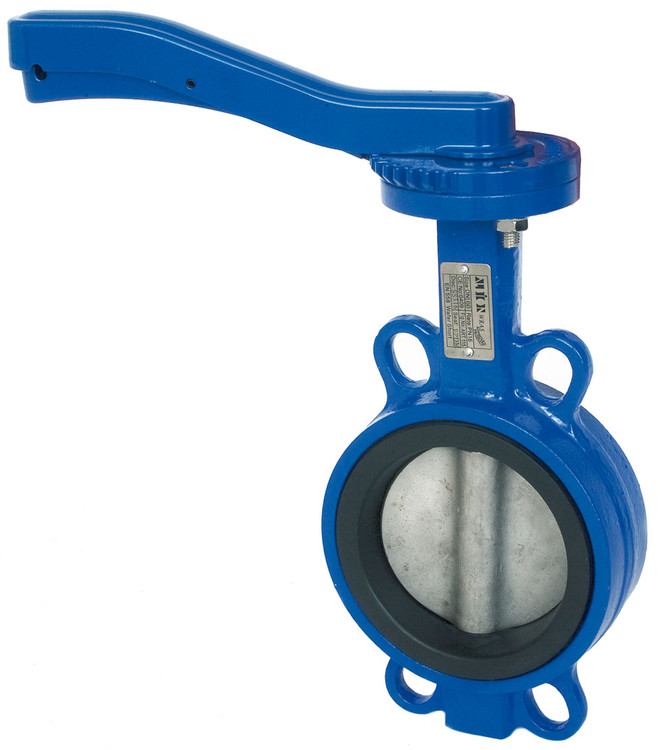

شیر پروانه اهرمی VSM چدنی با دیسک استنلس استیل PN16
برند :
VSM
آلیاژ بدنه:
چدنی DI /CI
آببند
EPDM
اتصال
ویفری بین فلنجی
فشار کاری
PN16
مخصوص صنایع :
آب ، مایعات ، فاضلاب
دمای کاری:
120
ساخت کشور:
China
VSM Lever Butterfly Valve with Stainless Steel Disc and EPDM Sealing - PN16 Working Pressure
📌 General Specifications of the VSM Butterfly Valve:
The VSM Lever Butterfly Valve with a wafer design is one of the most commonly used industrial valves in fluid transfer lines. The valve body is made from Ductile Iron (DI), and the disc is manufactured from stainless steel (CF8 or CF8M), ensuring high resistance against corrosion, pressure, and varying working temperatures. The EPDM sealing ensures perfect sealing and long-lasting performance in various operating conditions.
✅ Key Features:
-
Wafer type design suitable for installation between flanges
-
Body made of Ductile Iron (DI)
-
Disc made of Stainless Steel CF8 or CF8M
-
EPDM Sealing with high-temperature resistance and chemical resistance
-
Working pressure: PN16
-
Available sizes: From 2 inches to 12 inches
-
Durable lever handle with position-locking mechanism
-
Guaranteed performance and sealing in different conditions (water, air, mild chemicals)
-
Spare parts and gaskets available for VSM brand valves
📊 Technical Specifications (Dimensions and Approximate Weight):
| Size (Inch) | Face to Face Length (mm) | Flange Diameter (mm) | Approx. Weight (kg) |
|---|---|---|---|
| 2" | 43 | 125 | 4.2 |
| 3" | 46 | 160 | 5.8 |
| 4" | 52 | 180 | 7.5 |
| 6" | 56 | 220 | 12.5 |
| 8" | 60 | 280 | 17.5 |
| 10" | 68 | 345 | 25.0 |
| 12" | 78 | 400 | 31.0 |
⚙️ Ductile Iron (DI) Material Explanation:
Gray Iron (CI):
Has a graphite structure, less expensive, but more brittle and suitable for lower pressure applications.
Ductile Iron (DI):
Has spherical graphite, more flexible, and resistant to pressure and impact. Ideal for industrial applications requiring high pressure, such as valves.
💡 EPDM Sealing Material Explanation:
-
Working Temperature: From -30°C to +130°C
-
Resistant to: Water, steam, mild acidic substances, ozone, and UV rays
-
Not resistant to: Oils and petroleum-based solvents
-
Advantages: High flexibility, long durability, suitable for both sanitary and industrial applications
🔩 Disc Material CF8 and CF8M:
-
CF8: Equivalent to stainless steel 304, resistant to general corrosion, suitable for non-corrosive fluids.
-
CF8M: Equivalent to stainless steel 316, with added molybdenum for better resistance to chlorides and acidic environments.
-
Key Difference: CF8M is more resistant to localized corrosion such as pitting and suitable for more aggressive, corrosive applications.
🌟 VSM Brand Quality:
The VSM brand is renowned for its high-quality and cost-effective products in the Iranian market. Its products offer excellent build quality, precise sealing, and long-term durability. The durable lever handle with a well-engineered design is one of the standout features of this valve. Furthermore, VSM valves offer a competitive price compared to both domestic and international brands, making them a popular choice for industrial projects.
📲 For instant price inquiries, click on the WhatsApp icon on this page or send a message to 09195176310!
📍 Store Location on Google Maps: View Store Location
📞 Store Contact Number: 021-33939659
021-33922432
📦 The VSM Lever Butterfly Valve is also available on the Torob website.
📸 Follow our Instagram page:
@boniad_steel
معرفی شیر پروانه ای اهرمی VSM با دیسک استنلس استیل و آببندی EPDM - فشار کاری PN16
🔍 مشخصات کلی شیر پروانه ای VSM:
شیر پروانه ای اهرمی برند VSM با طراحی ویفری (Wafer) یکی از پرکاربردترین شیرآلات صنعتی در خطوط انتقال سیالات است. بدنه این شیر از جنس چدن داکتیل (DI) و دیسک آن از استنلس استیل با آلیاژ CF8 یا CF8M تولید شده که مقاومت بالا در برابر خوردگی، فشار و دمای کاری مختلف را تضمین میکند. لاستیک آببندی از جنس EPDM با کیفیت بالا، باعث ایجاد آببندی کامل و دوام طولانی در شرایط کاری مختلف شده است.
✅ ویژگیهای اصلی:
-
طراحی ویفری Wafer Type مناسب برای نصب بین فلنجها
-
بدنه از چدن داکتیل (Ductile Iron - DI)
-
دیسک از استنلس استیل CF8 یا CF8M
-
آببندی EPDM با تحمل دمای بالا و مقاومت شیمیایی
-
فشار کاری: PN16
-
سایزهای قابل عرضه: از 2 اینچ تا 20 اینچ
-
دسته اهرمی مقاوم با قفل تنظیم موقعیت
-
ضمانت عملکرد و آببندی در شرایط مختلف (آب، هوا، مواد شیمیایی ضعیف)
-
بدون پین بودن دیسک
-
قابل تأمین بودن قطعات و واشرهای یدکی مارک VSM
📃 جدول مشخصات فنی (ابعاد و وزن تقریبی)شیر پروانه VSM:
| سایز (اینچ) | طول Face to Face (mm) | قطر فلنج (mm) | وزن تقریبی (kg) |
|---|---|---|---|
| 2" | 43 | 125 | 4.2 |
| 3" | 46 | 160 | 5.8 |
| 4" | 52 | 180 | 7.5 |
| 6" | 56 | 220 | 12.5 |
| 8" | 60 | 280 | 17.5 |
| 10" | 68 | 345 | 25.0 |
| 12" | 78 | 400 | 31.0 |
⚖️ توضیح درباره متریال چدن:
چدن خاکستری (CI): دارای ساختار گرافیتی، ارزانتر، اما شکنندهتر و مناسب برای فشارهای پایینتر.
چدن داکتیل (DI): دارای گرافیت کروی، انعطافپذیرتر و مقاومتر در برابر فشار و ضربه. مناسب برای کاربردهای صنعتی با فشار بالا مانند شیرآلات.
⚡ مشخصات EPDM:
-
دمای کاری: از -30°C تا +130°C
-
مقاوم در برابر: آب، بخار، مواد اسیدی ضعیف، ازون و اشعه UV
-
غیر مقاوم در برابر: روغنها و حلالهای نفتی
-
مزایا: انعطاف بالا، دوام طولانی، مناسب برای کاربردهای بهداشتی و صنعتی
🔧 جنس دیسک CF8 و CF8M:
-
CF8: معادل استنلس استیل 304، مقاوم در برابر خوردگی عمومی، مناسب برای سیالات غیر خورنده.
-
CF8M: معادل استنلس استیل 316، دارای مولیبدن برای مقاومت بالاتر در برابر کلرایدها و محیطهای اسیدی.
-
تفاوت اصلی: CF8M مقاومتر در برابر خوردگی موضعی مانند pitting و کاربردهای خورندهتر.
🌟 کیفیت برند VSM:
برند VSM یکی از برندهای خوشنام و اقتصادی تولید چین است که محصولات آن از کیفیت ساخت بالا، آببندی دقیق و دوام طولانی برخوردارند. دسته اهرمی مقاوم با طراحی مهندسیشده از ویژگیهای بارز این شیر است. همچنین قیمت مناسب نسبت به برندهای خارجی و داخلی، این شیر را گزینهای محبوب در پروژههای صنعتی کرده است.
📲 برای استعلام لحظهای قیمت شیر اهرمی بین فلنجی VSM بر روی آیکون واتساپ در همین صفحه کلیک کنید یا به شماره 09195176310 پیام دهید!
📍 موقعیت فروشگاه بنیاد استیل در گوگلمپ: مشاهده موقعیت مکانی فروشگاه
📞 شماره تماس: 021-33939659
021-33922432
📦 شیر پروانه ای اهرمی VSM در سایت ترب نیز عرضه شده است.
بنیاداستیل،نمایندگی فروش شیر پروانه VSM در تهران !
📸 صفحه اینستاگرام ما را دنبال کنید: @boniad_steel
