Booster Pump System | Components, Function, and Essential Accessories

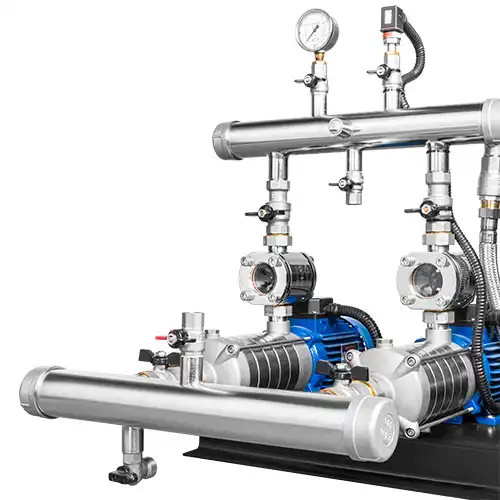

What Is a Booster Pump?

A Booster Pump System is a crucial component in residential, commercial, and industrial water supply networks, designed to increase and stabilize water pressure. When the municipal water supply is insufficient to meet consumption demands, the booster system comes into action. It typically includes multiple centrifugal pumps operating in parallel, along with a control panel to regulate their operation based on system demand.

Main Components of a Booster Pump System

A well-designed booster pump system consists of the following core components:

• Centrifugal Pump(s)
  Selected based on required flow and head, material (e.g., cast iron, stainless steel), and intended use (drinking water, firefighting, industrial).

• Electrical Control Panel
  Equipped with inverter (VFD), PLC, contactors, circuit breakers, phase protection relays, fuses, timers, and digital indicators.

• Pressure Transmitter
  Sends real-time pressure signals to control variable-speed operation for maintaining precise output pressure.

• Diaphragm Expansion Tank (Pressure Vessel)
  Helps stabilize pressure and absorb water hammer during peak demand or pump start/stop.

• Inlet & Outlet Collectors (Headers)
  Made of stainless steel or galvanized steel, typically flanged (PN16) for secure connections.

Valves and Fittings Used in Booster Pump Systems

✅ Fittings:

• Galvanized or stainless steel nipples

• Couplings, bushings, reducers (threaded/welded)

• Elbows (90°/45°)

• Flanges (Slip-On, Blind, Weld Neck)

• Flexible rubber or stainless steel expansion joints

✅ Valves:

• Check Valves (spring-loaded or swing type)

• Gate Valves or Butterfly Valves for on/off control

• Pressure Reducing Valves

• Air Release Valves

• Safety Relief Valves

• Y-Strainers to filter particles before entering pumps

Base Frame and Assembly

The pump group and panel are mounted on a heavy-duty steel base with epoxy paint to resist corrosion and vibration.

Types of Booster Pump Systems

1. Fixed Speed Booster System
   Operated via pressure switches; simple and cost-effective for less critical applications.

2. Variable Speed Booster System (VFD Controlled)
   Uses inverter and PLC for advanced control, ensuring consistent pressure, energy savings, and smoother operation.

Key Considerations for Booster Pump Selection

• Accurate calculation of required flow rate and head

• Material compatibility for wetted parts (SS304/316, brass, cast iron)

• Installation environment (humidity, ventilation, noise)

• Motor protection rating (IP55 or higher recommended)

• Adequate expansion tank capacity and proper valve sizing

• System redundancy (e.g., standby pump)

Applications of Booster Pump Systems

• High-rise buildings and complexes

• Agricultural irrigation systems

• Pharmaceutical and food processing lines

• Firefighting systems (with special pump setups)

• Urban water supply networks

Maintenance Checklist

• Monitor pump sounds and vibration

• Check diaphragm tank pressure (usually 2-4 bar)

• Inspect pressure transmitters or switches

• Confirm proper valve function and no leakage

• Inspect VFDs, control panel wiring, and PLC logic

• Clean Y-strainers and filters regularly

Benefits of a Booster Pump System

• Stable water pressure during variable demand

• Energy-efficient performance (especially with VFD)

• Extended pump and component life

• Minimal system downtime

• Quiet operation

Conclusion

A reliable booster pump system is built upon high-quality pumps, accurate controls, and robust piping accessories. Correct design, appropriate valve and fitting selection, and scheduled maintenance ensure long-term system efficiency and minimal operational costs.
