شیر صافی 304 استنلس استیل

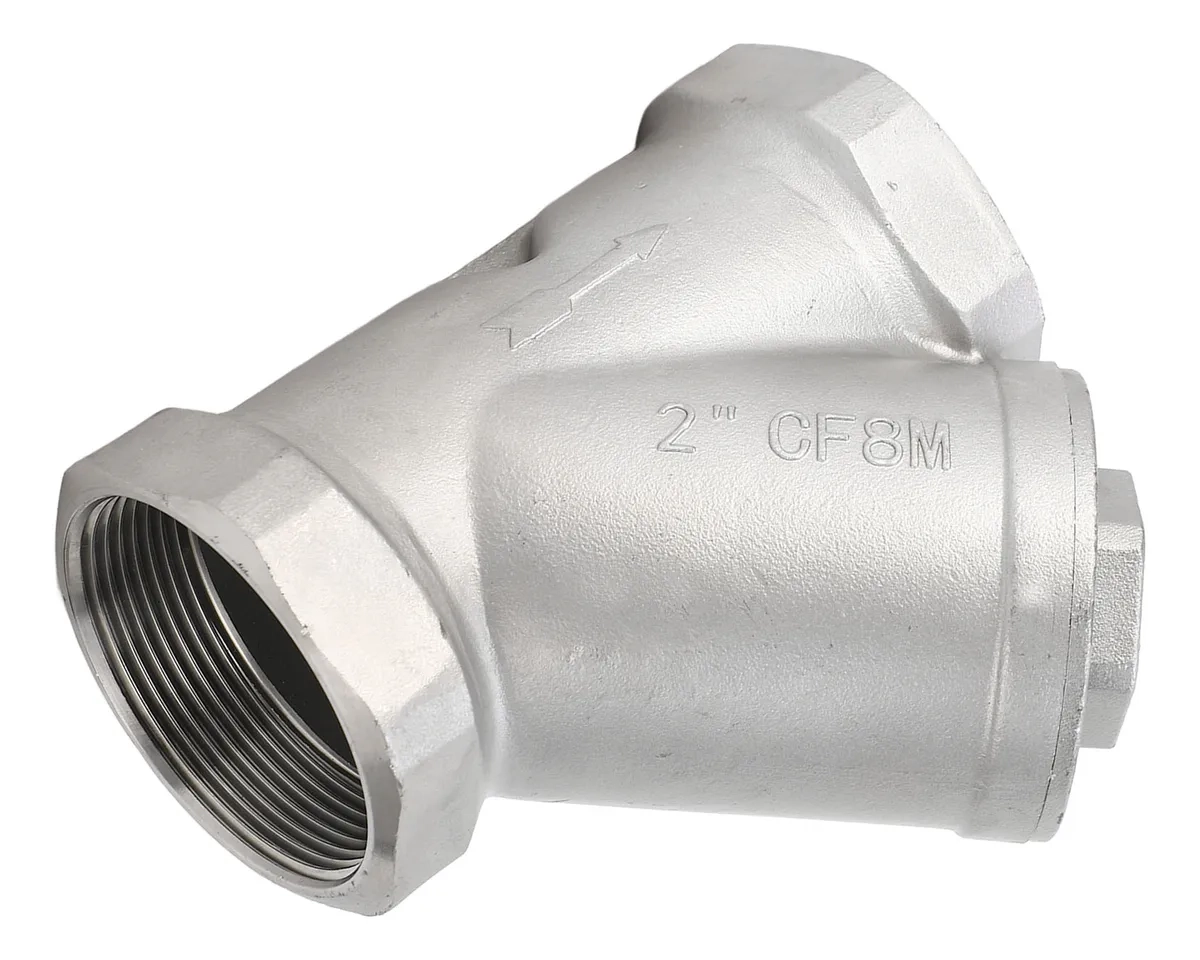

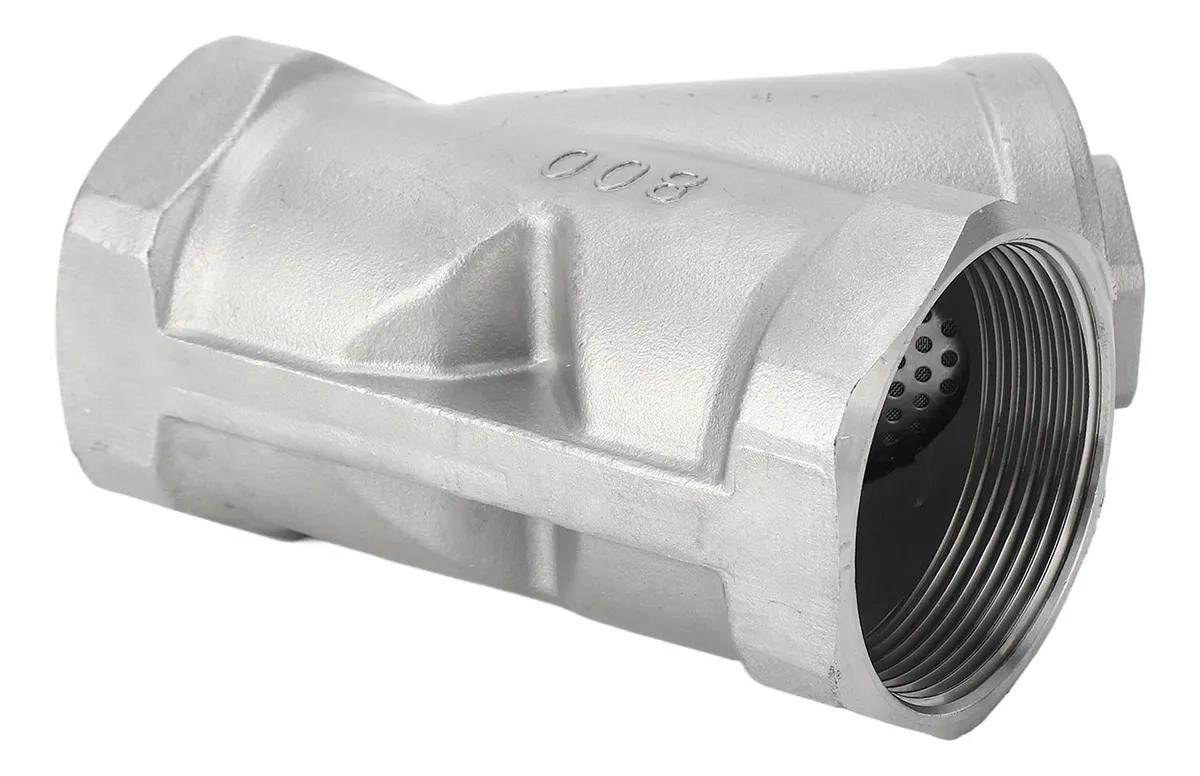

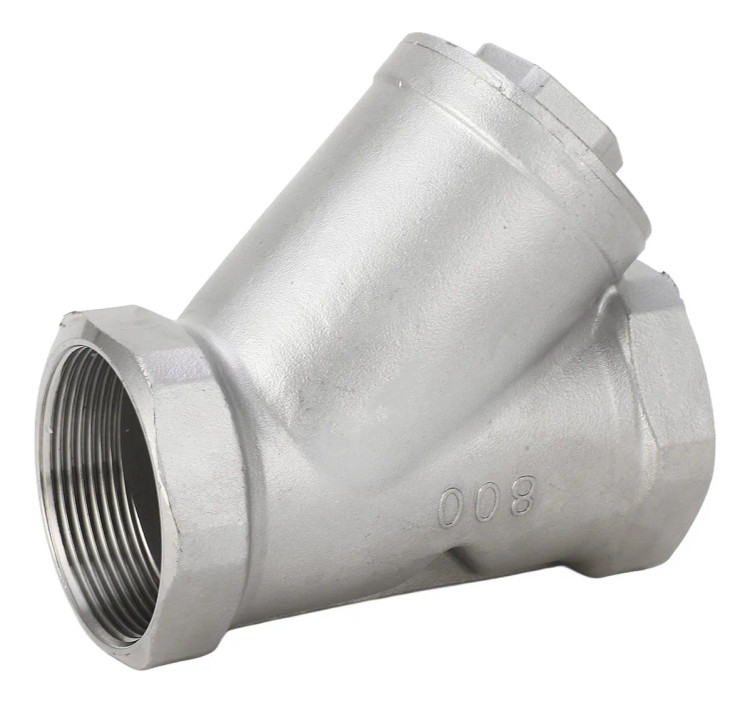

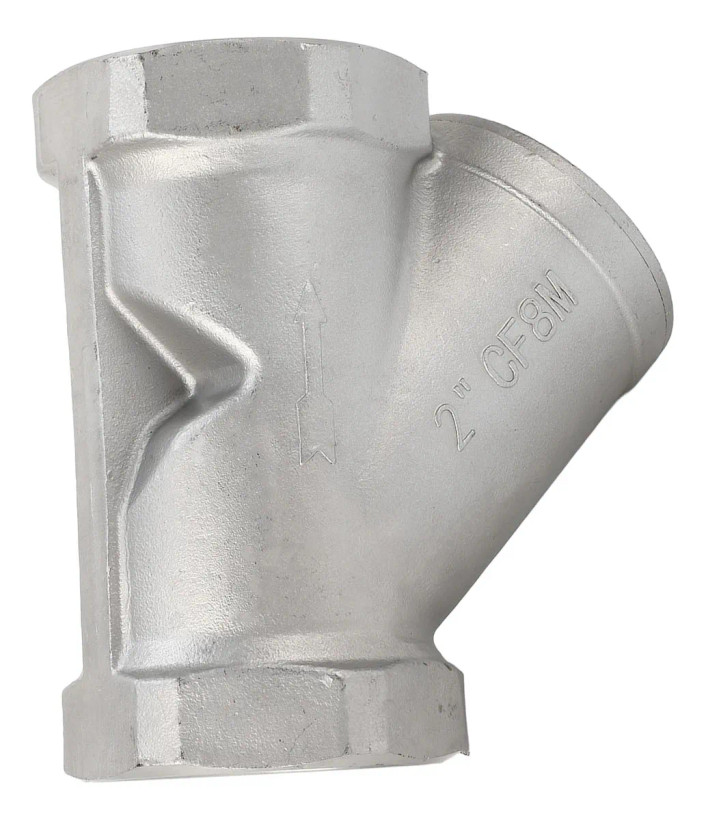

🔧 Stainless Steel 304 Threaded Y-Strainer – 800 PSI (NPT/BSPT)

45° Angle Filter Strainer with Dual Mesh – KITZ / NIPPON

The Stainless Steel 304 Y-Strainer with 45-degree angled body and threaded NPT/BSPT connection is a robust and efficient filtration solution for removing debris from fluid lines in industrial systems. With a working pressure of 800 PSI and dual mesh filters (fine and coarse), this strainer ensures protection for pumps, valves, and instruments in demanding applications.

✅ Key Features:

• Body Material: SS 304 – corrosion-resistant stainless steel

• Connection Type: Threaded NPT (up to 2") – BSPT available upon request

• Design: 45-degree angle for smooth flow and easy drainage

• Working Pressure: Up to 800 PSI

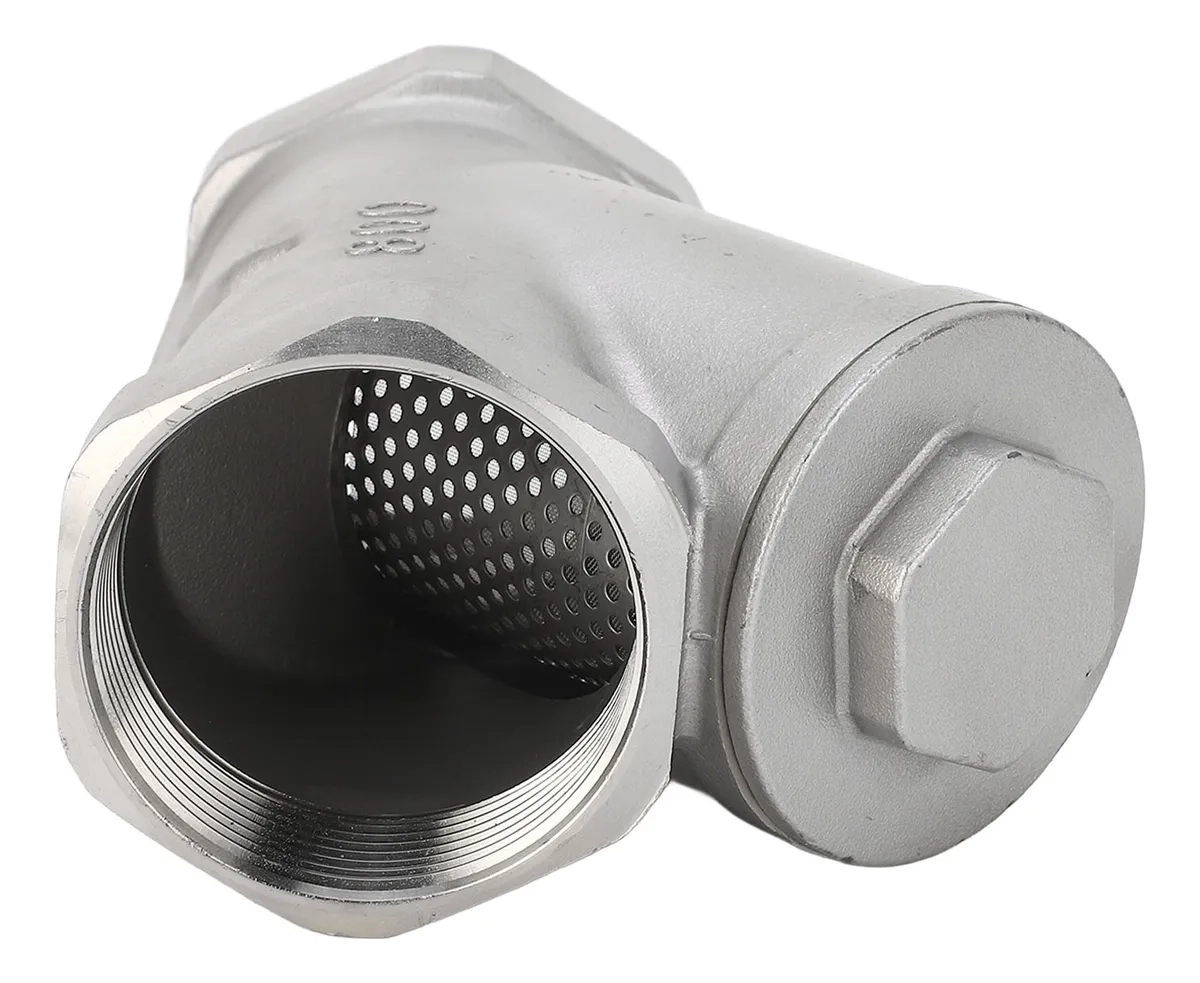

• Filter Type: Comes with two mesh screens (fine and coarse) – replaceable

• Brands Available: KITZ (Japan), NIPPON

• Applications: Suitable for water, steam, oil, compressed air, and light chemicals

• Operating Temperature: -10°C to 180°C

• Standards: ASTM A351 CF8, ANSI, ASME B16.34

📏 Technical Specifications:

⚠️ Fluids Not Recommended for SS304:

While SS304 is widely used due to its corrosion resistance, it is not suitable for use with the following:

• Hydrochloric Acid (HCl)

• High-temperature Sulfuric Acid

• Chloride-rich Environments

• Saltwater (Seawater)

In such environments, Stainless Steel 316 or Duplex grades are strongly recommended.

🧪 Chemical Composition of SS 304:

🛠️ Mechanical Properties of Stainless Steel 304:

• Tensile Strength: ~515 MPa

• Yield Strength: ~205 MPa

• Hardness: ~201 HB

• Weldability: Excellent

• Corrosion Resistance: High (except in chloride-rich environments)

❓ Frequently Asked Questions (FAQ)

Q1. Is this strainer suitable for seawater applications?
No. For seawater, it is recommended to use SS316 or Duplex stainless steel for better resistance.

Q2. Can I replace or clean the mesh filter?
Yes, both the fine and coarse mesh screens are fully replaceable and easy to clean.

Q3. Is this Y-strainer available in sizes larger than 2 inches?
No. Threaded models are available up to 2". For larger sizes, please consider our flanged Y-strainers.
