درب منهول استیل 316 دایره
آببند
واشر سیلیکونی
آلیاژ:
316
ابعاد:
25 تا 55 میلیمتر
برند:
ALFA
فشارکاری:
5 bar

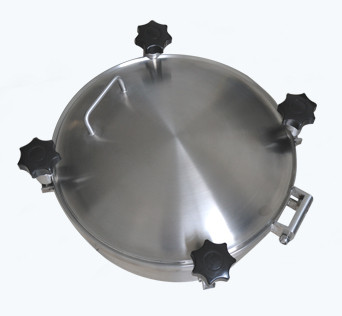

🟦 Stainless Steel Circular Manhole Cover – 316 Grade (25cm to 55cm)
The 316 stainless steel circular manhole cover is an essential component in storage tanks and process lines, especially in the pharmaceutical, food, chemical, and hygienic industries, providing safe and convenient access for inspection, maintenance, and cleaning.
✅ General Specifications:
-
Material: High-quality 316 stainless steel sheet with polished surface
-
Gasket: Heat and chemical-resistant silicone seal
-
Locking system: Stainless steel tightening clamps
-
Available sizes: 25 cm to 55 cm diameter, custom-made in Iran
-
Optional import: Available for bulk orders with high-end finish and specifications
-
Application: Suitable for pressurized tanks, CIP systems, storage vessels, and process lines
📏 Dimensions, Pressure & Temperature Table:
| Size (cm) | Working Pressure (bar) | Max Temperature (°C) | Sheet Thickness (mm) |
|---|---|---|---|
| 25 | 1.5 | 100 | 2 |
| 35 | 1.5 | 100 | 2 |
| 45 | 1.0 | 90 | 2 |
| 55 | 1.0 | 90 | 2.5 |
⚠️ Important Notes:
-
Listed prices are approximate estimates and may vary depending on exchange rate fluctuations and selected materials.
📲 For accurate pricing and order inquiries, please click the WhatsApp icon on this page and send us your request.
🌍 Custom Manufacturing Service:
Bonyad Steel is ready to manufacture and supply circular 316 stainless steel manhole covers in China, based on your custom specifications, and deliver them by air or sea freight.
📍 Store Location – Bonyad Steel:
View on Google Maps
Address: 1st Floor, No. 180, Grand Khayyam Passage, Khayam Shomali Street, Opposite Park-e Shahr, Tehran, Iran
📞 Contact Information:
Phone Numbers:
021-33939659
021-33922432
🛒 Available on Torob Website:
Stainless steel 316 circular manhole cover is listed on Torob online market

🟢 درب منهول استیل دایرهای 316 – از سایز 25 تا 55 سانت
درب منهول استیل 316 (Manhole Stainless Steel 316 Circular) یکی از تجهیزات کلیدی در خطوط تولید صنایع دارویی، غذایی، شیمیایی و بهداشتی است که امکان دسترسی ایمن و سریع به داخل مخازن استنلس استیل را فراهم میسازد.
✅ مشخصات کلی:
-
جنس بدنه: استنلس استیل 316 براق و مقاوم در برابر خوردگی
-
واشر: سیلیکونی مقاوم در برابر حرارت و مواد شیمیایی
-
سیستم بسته شدن: مجهز به گیرههای سفتکننده استیل
-
سایزها: قابل ساخت سفارشی از ۲۵ سانتیمتر تا ۵۵ سانتیمتر قطر خارجی
-
ساخت: تولید داخلی طبق سفارش / وارداتی با کیفیت بالا و تیراژ بالا
-
مناسب برای: مخازن تحت فشار، تانکهای ذخیره، خطوط CIP و تجهیزات فرآیندی
📊 جدول ابعاد، فشار کاری و دمای مجاز:
| سایز (cm) | فشار کاری (bar) | دمای مجاز (°C) | ضخامت ورق (mm) |
|---|---|---|---|
| 25 | 1.5 | 100 | 2 |
| 35 | 1.5 | 100 | 2 |
| 45 | 1 | 90 | 2 |
| 55 | 1 | 90 | 2.5 |
❗ نکات مهم:
-
قیمتها به صورت حدودی هستند و ممکن است با توجه به نرخ ارز و جنس ورق نهایی تغییر کنند.
📲 برای استعلام دقیق قیمت و ثبت سفارش، لطفاً روی آیکون واتساپ در همین صفحه کلیک کنید و پیام خود را ارسال فرمایید.
🌍 خدمات سفارشی:
فروشگاه بنیاد استیل آمادگی دارد درب منهول دایرهای استیل 316 را در کشور چین بنا به سفارش مشتری و با کیفیت دلخواه تولید و به صورت دریایی یا هوایی ارسال نماید.
📌 لوکیشن فروشگاه بنیاد استیل:
مشاهده در گوگل مپ
آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
☎️ راههای ارتباطی:
شماره تماس فروشگاه بنیاد استیل:
021-33939659
021-33922432
📦 موجود در سایت ترب:
درب منهول دایرهای استنلس استیل 316 عرضه شده در سایت ترب Torob
