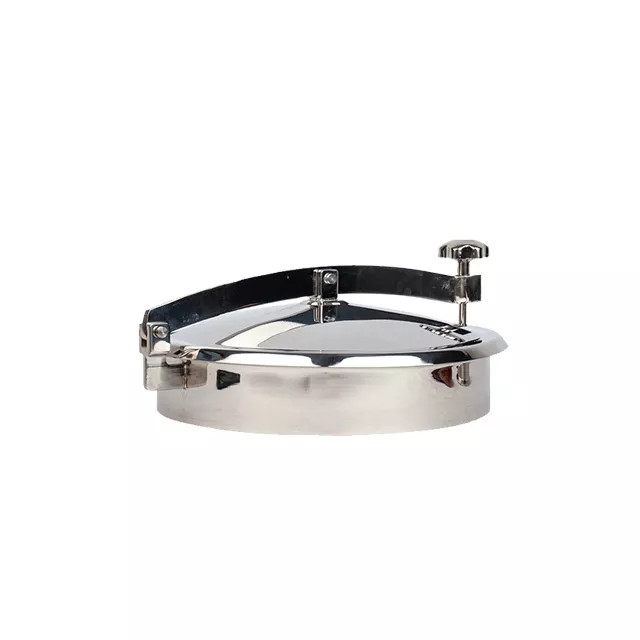

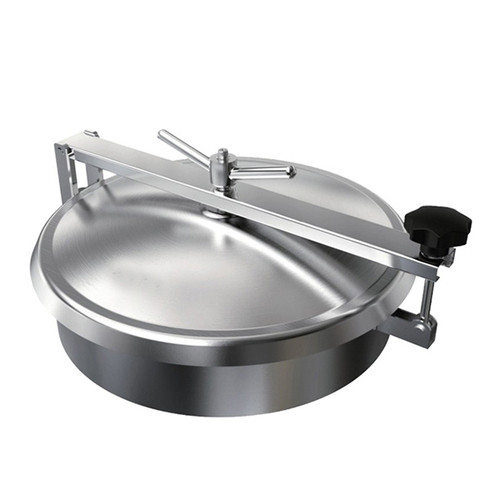

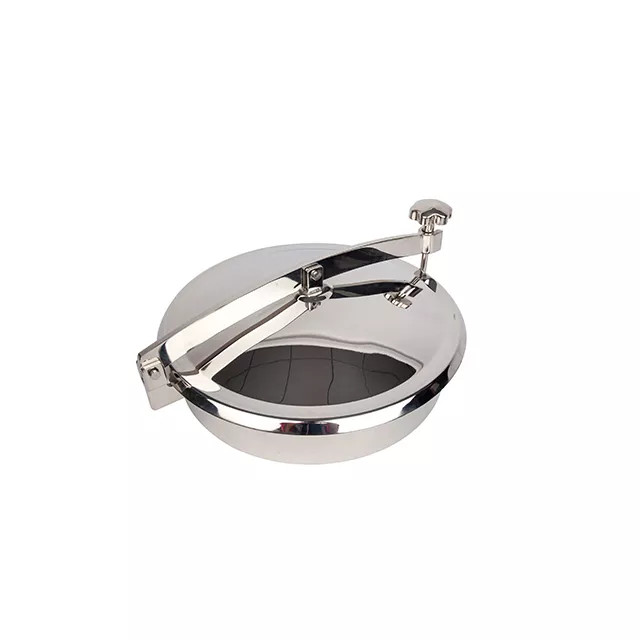

دریچه منهول استنلس استیل ۳۰۴ گرد

Premium Round Stainless Steel Composite Tank

Product Overview
Experience excellence with our high-performance round tank, meticulously crafted with a robust stainless steel coating and superior composite materials. Engineered to deliver exceptional durability and safety, this tank is ideal for a variety of industrial applications—from food and beverage processing to chemical storage.

Key Technical Specifications

• Shape & Finish:

  • Design: Round
  • Coating: High-quality stainless steel for enhanced corrosion resistance

• Dimensions & Weight:

  • Base Dimension: 800 mm
  • Overall Size: 800 mm
  • Weight: Lightweight at 30 kg, yet built to last

• Material & Build:

  • Core Material: Advanced composite material ensuring longevity
  • Load Capacity: Supports up to 3000 kg
  • Tensile Strength: 10 KPa, guaranteeing reliability under pressure
  • Locking Mechanism: Integrated secure lock for added safety

Performance & Customization Features

• Industrial Application:
  Designed specifically for tanks used in food, beverage, chemical, and other industrial sectors.

• Stainless Steel Components:

  • Contact parts are available in premium AISI304 and AISI316L stainless steel
  • Remaining components utilize durable AISI304 stainless steel

• Pressure & Welding Options:

  • Standard pressure ratings: 1-3 bar, 5-10 bar (customizable to your needs)
  • Standard welding sizes include 430×330 mm, 530×430 mm, and 635×525 mm, with larger sizes available upon request

• Custom Dimensions:

  • Height: Standard 100 mm (modifiable to match customer specifications)
  • Wall Thickness:
    • Neck: Standard 3 mm
    • Cover: Standard options of 8 mm or 10 mm, customizable as required

• Sealing & Surface Finishes:

  • Gasket Options: Available in silicone, EPDM, NBR, VITON, or PTFE (complying with FAD 177.2600)
  • Surface Treatment:
    • Internal: Ultra-smooth finish (0.4–0.8 µm)
    • External: Choice of mirror polished, matte, or sand-blasted finishes

Logistics & Market Information

• FOB Port: Shipping from Shanghai A-A1/4AOE, China
• Payment Terms: Accepts Letter of Credit (L/C), Western Union, Paypal, and Telegraphic Transfer (T/T)
• Production Capacity: 3000 units per month
• Delivery Time: Fast turnaround within 5-7 days
• Packaging: Securely packaged in carton cases for safe transport
• Global Reach: Trusted by major markets in Western Europe, North America, the Middle East, and Asia
• Certifications: Compliant with ISO A-A1/4As9001:9002 standards

Elevate your industrial operations with this customizable and reliable stainless steel tank—crafted to meet your precise needs and exceed industry standards. Contact us today to learn more about how our product can be tailored to your specific requirements!
