لوپ استنلس استیل ۱۸۰ درجه

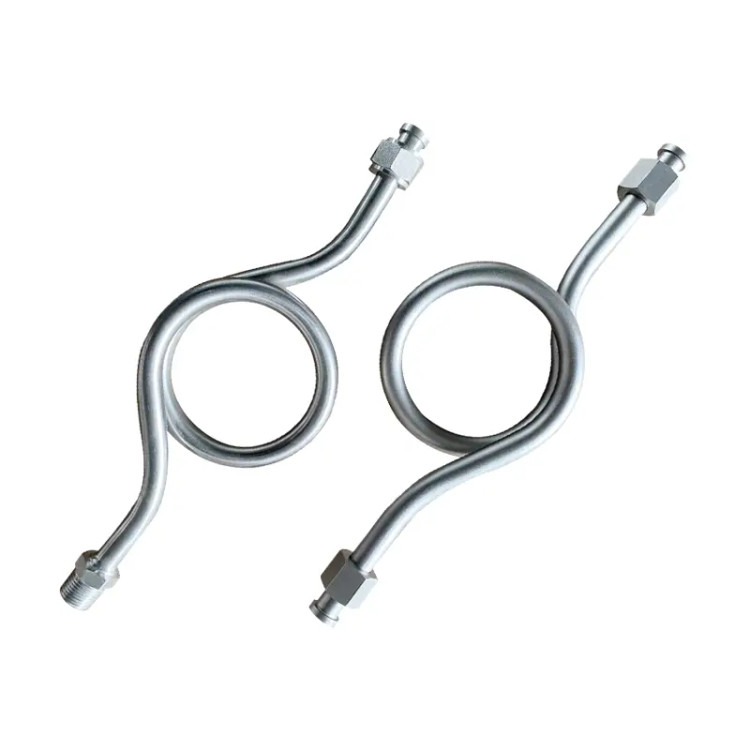

180-Degree Stainless Steel Loop (316 Alloy) – Advanced Protection for Pressure Gauges

The 180-degree stainless steel loop (316 alloy) is a crucial component for mitigating pressure fluctuations and extending the lifespan of pressure gauges in industrial systems. Its curved 180-degree design helps distribute pressure evenly, reducing direct pressure surges and protecting sensitive instruments from sudden shocks.

Features & Benefits:

✅ Material: Stainless Steel 316 – Superior corrosion and chemical resistance
✅ 180-Degree Design – Ensures uniform pressure distribution and minimizes pulsations
✅ Pressure Gauge Protection – Enhances measurement accuracy and durability
✅ Wide Industrial Applications – Ideal for oil, gas, petrochemical, and pressure monitoring systems

Technical Specifications:

• Material: Stainless Steel 316
• Bend Angle: 180 Degrees
• Connection Type: Threaded (NPT/BSP) or Welded
• Pressure Rating: Up to 6000 PSI (depending on configuration)
• Tube Diameter: 6mm, 8mm, 10mm, or customized upon request
• Temperature Range: -40°C to +400°C
• Usage: Designed to reduce pressure pulsations and protect pressure gauges in demanding conditions

📞 Contact us today for more details and to place your order!
