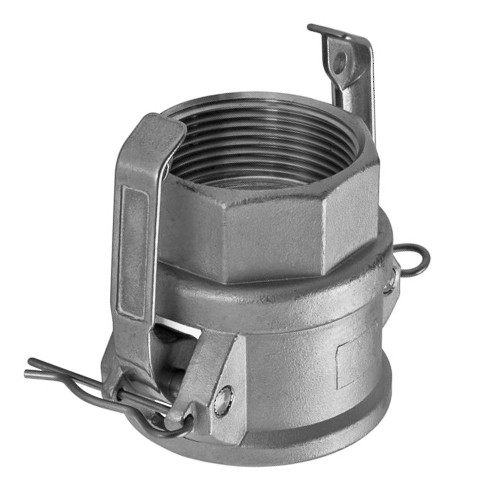

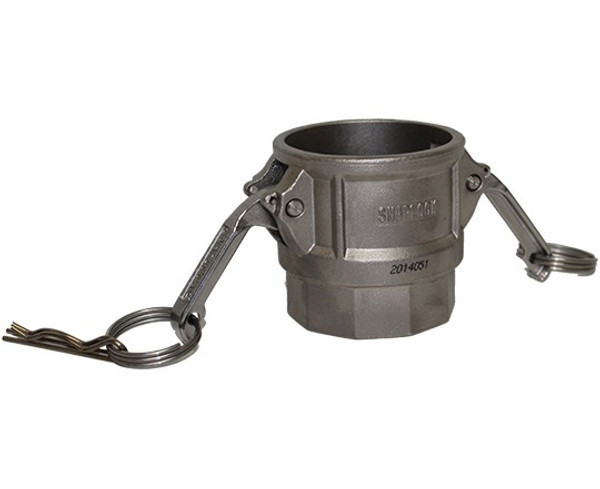

کوپلینگ آتش نشانی گوشواره ای استنلس استیل تیپ D
تیپ :
D
ابعاد
1/2 اینچ تا ۴ اینچ
متریال
316 - 304
دنده:
NPT
جنس واشر :
EPDM
-
Type D Stainless Steel Camlock Coupling with 316 Material and NPT Thread
Product Introduction and Application
The Type D Camlock Coupling is one of the most commonly used quick-connect couplings in various industries. This component is used for the fast and secure connection of pipelines and hoses. Due to its robust structure and standard design, it finds extensive applications in the oil, gas, petrochemical, pharmaceutical, food, and water supply industries.
Technical Specifications
- Coupling Type: Type D Camlock Coupling
- Material: Stainless Steel 316
- Thread Type: Internal NPT Thread
- Operating Temperature Range: -20°C to +220°C
- Working Pressure: Up to 250 psi depending on size
-
Available Materials
- Stainless Steel 304
- Stainless Steel 316
-
Available Brands
- ALFA
- Dixon
- PT Coupling
-
Applications in Various Industries
- Petrochemical and refinery industries
- Food and pharmaceutical industries
- Chemical transfer systems
- Water supply and industrial wastewater systems
- Marine and shipbuilding industries
-
Working Pressure and Size Chart
Size (Inches) Working Pressure (Bar) Working Pressure (Psi) 1/2" 16 232 3/4" 16 232 1" 14 203 1-1/2" 12 174 2" 10 145 3" 8 116 4" 6 87 Advantages and Disadvantages
✅ High resistance to corrosion and rust
✅ Quick connection and disconnection without special tools
✅ Compatibility with chemical and acidic fluids
✅ Long lifespan and stable performance in harsh industrial conditions
❌ Higher cost compared to iron or brass couplings
❌ Requires precision in selecting size and connection typeManufacturing Process
The Type D Camlock Coupling is made from 316 stainless steel using the precision investment casting method. It undergoes heat treatment and surface polishing. Following this, the NPT threads are machined to precise standards, and the product is subjected to pressure and quality testing.
International Dimensional and Alloy Standards
- ASTM A351 standard for 316 stainless steel material
- ISO 2852 and DIN 32676 standards for dimensions and fittings
- NPT thread standard according to ANSI B1.20.1
-
Important Installation and Maintenance Notes
- Inspect the inner surface of the coupling for rust or contamination before installation.
- Ensure the locking mechanism is secure before use to extend lifespan.
- After use in chemical environments, clean and dry the coupling.
- Using compatible lubricants is recommended to prevent thread wear.
-
📍 Bonyad Steel Store
📍 Address: Tehran, North Khayyam Street, Opposite Park-e Shahr, Grand Khayyam Passage, First Floor, Unit 180
📞 Contact Number: [Store Phone Number] - The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
- Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2″ (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)
- Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
- Standard Buna-N seal installed
- Stainless steel 316 material
کوپلینگ گوشوارهای استنلس استیل تیپ D با متریال 316 و دنده NPT
camlock coupling stainless steel 316-type D
معرفی و کاربرد محصول
کوپلینگ گوشوارهای تیپ D (Type D Camlock Coupling) یکی از انواع کوپلینگهای سریع و پرکاربرد در صنایع مختلف است. این قطعه جهت اتصال سریع و ایمن خطوط لوله و شیلنگها استفاده میشود و به دلیل ساختار مقاوم و طراحی استاندارد، کاربرد گستردهای در صنایع نفت، گاز، پتروشیمی، دارویی، غذایی و سیستمهای آبرسانی دارد.
اطلاعات فنی محصول
- نوع کوپلینگ: گوشوارهای تیپ D
- متریال: استنلس استیل 316 (Stainless Steel 316) و همچنین ۳۰۴
- نوع دنده: دنده داخلی NPT
- محدوده دمایی عملکرد: -20°C تا +220°C
- فشار کاری: بسته به سایز، حداکثر تا 250 psi
متریالهای قابل ارائه کوپلینگ تیپ D:
- استنلس استیل 304
- استنلس استیل 316
برندهای موجود کوپلینگ آتش نشانی تیپ D استنلس استیل :
- ALFA
- کایزر kaisser
- PT Coupling
کاربردهای کوپلینگ استیل در صنایع مختلف:
- صنایع پتروشیمی و پالایشگاهها
- صنایع غذایی و دارویی
- سیستمهای انتقال مواد شیمیایی
- خطوط آبرسانی و فاضلاب صنعتی
- صنایع دریایی و کشتیسازی
جدول فشار کاری و سایزبندی
| سایز (اینچ) | فشار کاری (Bar) | فشار کاری (Psi) |
|---|---|---|
| 1/2" | 16 | 232 |
| 3/4" | 16 | 232 |
| 1" | 14 | 203 |
| 1-1/2" | 12 | 174 |
| 2" | 10 | 145 |
| 3" | 8 | 116 |
| 4" | 6 | 87 |
مزایا و معایب کوپلینگ مادگی گوشواره ای استنلس استیل :
✅ مقاومت بالا در برابر خوردگی و زنگزدگی
✅ امکان اتصال و جداسازی سریع بدون نیاز به ابزار خاص
✅ سازگاری با سیالات شیمیایی و اسیدی
✅ طول عمر بالا و عملکرد پایدار در شرایط صنعتی سخت
❌ قیمت بالاتر نسبت به کوپلینگهای آهنی یا برنجی
❌ نیاز به دقت در انتخاب سایز و نوع اتصال
پروسه تولید کوپلینگ مادگی تیپ D استیل :
کوپلینگ گوشوارهای تیپ D از آلیاژ استنلس استیل 316 با استفاده از روش ریختهگری دقیق (Investment Casting) تولید شده و سپس با عملیات حرارتی و پولیش سطحی پردازش میشود. پس از این مرحله، دندههای NPT با استانداردهای دقیق ماشینکاری شده و در نهایت، محصول تست فشار و کیفیت میشود.
استانداردهای ابعادی و آلیاژی بینالمللی
- استاندارد ASTM A351 برای متریال استنلس استیل 316
- استاندارد ISO 2852 و DIN 32676 برای ابعاد و اتصالات
- استاندارد NPT مطابق با ANSI B1.20.1
نکات مهم درباره نصب و نگهداری
- قبل از نصب، سطح داخلی کوپلینگ از نظر زنگزدگی یا آلودگی بررسی شود.
- برای افزایش طول عمر، از محکم بودن قفل اتصال قبل از استفاده اطمینان حاصل کنید.
- پس از استفاده در محیطهای شیمیایی، کوپلینگ را شستشو داده و خشک کنید.
- استفاده از روانکنندههای سازگار برای جلوگیری از سایش دندههای اتصال توصیه میشود.
📍 فروشگاه بنیاد استیل
📍 آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 شماره تماس: ۳۳۹۲۲۴۳۲--۳۳۹۳۹۶۵۹
