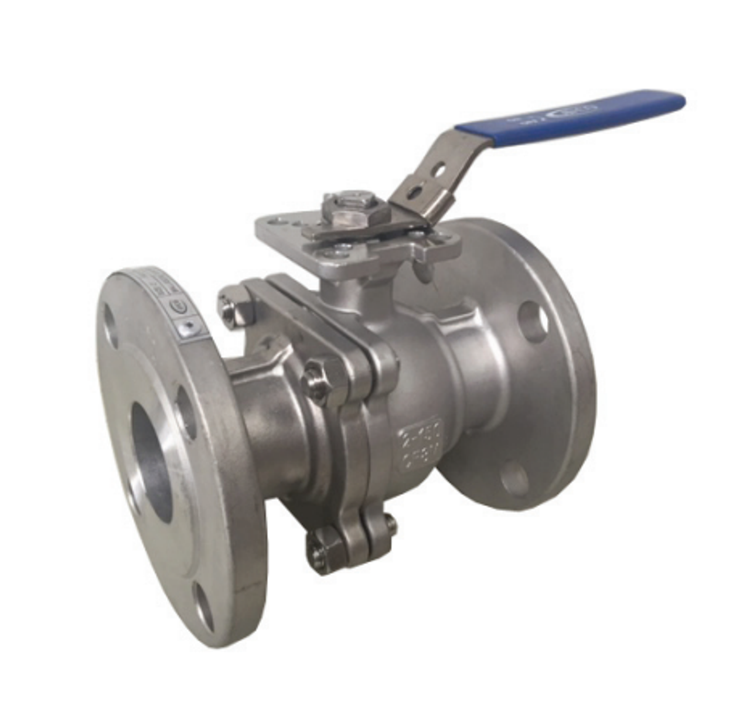

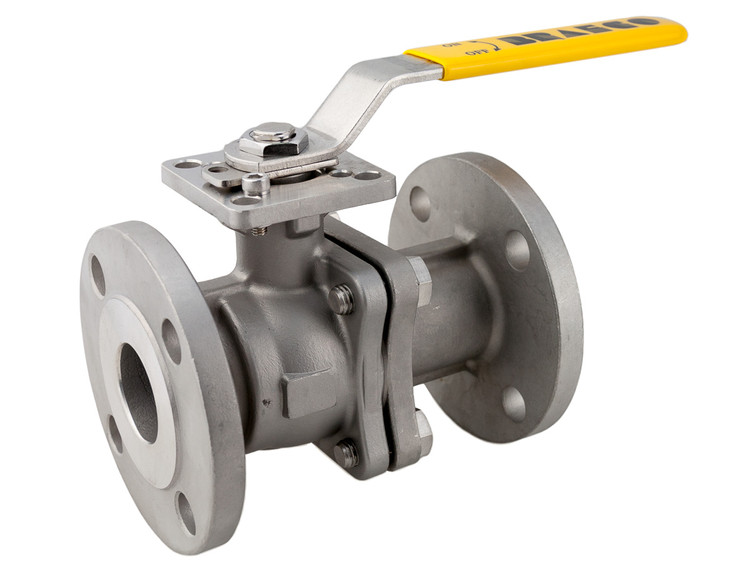

شیر توپی فلنج دار کلاس 150- 316 - KITZ
آببند
تفلون -PTFE
آلیاژ:
316
استاندارد
API600
اتصال
flange class 150
ابعاد
1/2 -8 اینچ
Flanged Ball Valve Class 150 - Stainless Steel 316 - KITZ
Introduction and Application of KITZ Flanged Ball Valve
The KITZ Class 150 Flanged Ball Valve, made of stainless steel 316, is widely used in industries such as oil, gas, petrochemical, food, pharmaceutical, and water treatment. Due to its unique design, this valve ensures quick and reliable flow control with an easy on/off mechanism.
Technical Specifications of KITZ Class 150 Flanged Ball Valve
- Body Material: Stainless Steel 316 (Corrosion-resistant)
- Connection Type: Flanged (ANSI B16.5 Standard)
- Pressure Class: 150 (Equivalent to PN 20)
- Seat and Gasket Material: PTFE for enhanced sealing and durability
- Operation Mechanism: Quarter Turn (90-degree rotation)
- Control Type: Manual (Lever) or Pneumatic/Electric Actuator Compatible
- Industry Applications: Oil, gas, petrochemical, chemical, pharmaceutical, and water treatment
Features and Benefits of KITZ Flanged Ball Valve
✅ High corrosion and rust resistance due to 316 stainless steel construction
✅ Standard flanged design for easy installation and reliable sealing
✅ Quick and simple operation with a 90-degree turn
✅ Suitable for high-pressure and high-temperature applications
✅ Compatible with pneumatic and electric actuators for automated systems
Applications of KITZ Class 150 Flanged Ball Valve
✔ Oil, Gas & Petrochemical Industry – Handling corrosive and hydrocarbon fluids
✔ Chemical Processing – Suitable for acidic and alkaline solutions
✔ Water Treatment & Wastewater Systems – Ensuring safe fluid transmission
✔ Food & Pharmaceutical Industry – Due to hygienic stainless steel 316 material
✔ Steam and High-temperature Systems – Withstanding extreme operating conditions
Pressure and Temperature Ratings of KITZ Flanged Ball Valve
| Pressure Class | Working Pressure (Bar) | Working Pressure (Psi) | Operating Temperature (°C) |
|---|---|---|---|
| 150 | 20 | 285 | -29 to 180 |
Available Brands
✅ KITZ (Japan)
✅ NIPPON
✅NEWWAY
Industry Standards for KITZ Class 150 Flanged Ball Valve
✔ ANSI B16.5 – Flange Dimension Standards
✔ API 598 – Valve Testing and Inspection Standard
✔ ASME B16.34 – Valve Design and Manufacturing Standard
📌 Due to exchange rate fluctuations and real-time price changes in stainless steel products, please click on the WhatsApp icon on this page to receive the latest price instantly.
📍 Bonyad Steel Store – Supplier of Industrial Valves and Fittings
📌 Address: Tehran, Khayyam Shomali St., Opposite Park Shahr, Grand Khayyam Passage, 1st Floor, Unit 180
📞 Contact Number: 00989195176310
شیر توپی فلنج دار کلاس 150 استنلس استیل 316 برندKITZ
flanged ball valve class 150-CF8M-KITZ 316-full port
معرفی و کاربرد شیر توپی فلنج دار KITZ
شیر توپی (Ball Valve) فلنجدار کلاس 150 برند KITZ از جنس استنلس استیل 316 یکی از پرکاربردترین انواع شیرآلات صنعتی در صنایع مختلف از جمله نفت، گاز، پتروشیمی، صنایع غذایی، دارویی و تصفیه آب است. این شیر به دلیل طراحی خاص خود، عملکردی سریع و مطمئن در کنترل و قطع و وصل جریان سیالات دارد.
مشخصات فنی شیر توپی فلنج دار کلاس 150 KITZ
- جنس بدنه: استنلس استیل 316 مقاوم در برابر خوردگی
- نوع اتصال: فلنجدار (Flanged) مطابق با استاندارد ANSI B16.5
- کلاس فشاری: 150 (معادل PN 20)
- متریال سیت و گسکت: PTFE برای آببندی بهتر و طول عمر بالا
- مکانیزم عملکرد: Quarter Turn (چرخش 90 درجهای)
- نحوه کنترل: دستی (Lever) یا پنوماتیک و الکتریکی
- کاربرد در صنایع: نفت، گاز، پتروشیمی، صنایع شیمیایی، دارویی و آب و فاضلاب
ویژگیها و مزایای شیر توپی فلنج دار KITZ
✅ مقاومت بالا در برابر خوردگی و زنگزدگی به دلیل جنس استنلس استیل 316
✅ طراحی فلنجدار استاندارد برای نصب آسان و آببندی مطمئن
✅ عملکرد سریع و آسان تنها با یک چرخش 90 درجهای
✅ تحمل فشار و دماهای بالا متناسب با استانداردهای صنعتی
✅ قابلیت استفاده با محرکهای پنوماتیکی و الکتریکی برای اتوماسیون خطوط تولید
کاربردهای شیر توپی فلنج دار کلاس 150 KITZ
✔ صنایع نفت، گاز و پتروشیمی برای کنترل سیالات خورنده و هیدروکربنی
✔ صنایع شیمیایی برای عبور مایعات اسیدی و قلیایی
✔ تصفیه آب و فاضلاب در سیستمهای انتقال آب و مواد شیمیایی
✔ صنایع غذایی و دارویی به دلیل بهداشتپذیری بالای استنلس استیل 316
✔ سیستمهای بخار و سیالات داغ به دلیل تحمل فشار و دمای بالا
جدول فشار کاری و دمایی شیر توپی فلنج دار KITZ
| کلاس فشاری | فشار کاری (Bar) | فشار کاری (Psi) | دمای کاری (°C) |
|---|---|---|---|
| 150 | 20 | 285 | -29 تا 180 |
برندهای موجود شیر توپی فلنجی استیل :
✅ KITZ (ژاپن)
✅ Nippon
✅NEWWAY- PK- B&G
استانداردهای شیر توپی فلنج دار کلاس 150 KITZ
✔ ANSI B16.5 – استاندارد ابعادی فلنجها
✔ API 598 – استاندارد تست و بازرسی شیرآلات
✔ ASME B16.34 – استاندارد طراحی و ساخت شیرآلات
📌 به دلیل نوسانات ارزی و تغییر لحظهای قیمت بال ولو فلنج دار 316 استنلس استیل، لطفاً برای استعلام دقیق قیمت بر روی آیکون واتساپ در همین صفحه کلیک کنید و قیمت آنی دریافت بفرمایید.
📍 فروشگاه بنیاد استیل – تأمینکننده انواع شیرآلات صنعتی استنلس استیل ::
📌 آدرس: تهران، خیابان خیام شمالی، روبروی پارک شهر، پاساژ بزرگ خیام، طبقه اول، پلاک ۱۸۰
📞 شماره تماس: 33922432 --3393959

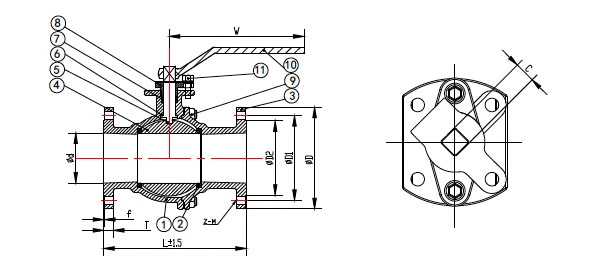

MATERIAL SPECIFICATIONS flangd ball valve 316 class 150
| No. | Part | Material | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Body | Stainless Steel 316 | ||||||||||||||
| 2 | Cap | Stainless Steel 316 | ||||||||||||||
| 3 | Solid Ball | Stainless Steel 316 | ||||||||||||||
| 4 | Seat | PTF | ||||||||||||||
| 5 | Stem | Stainless Steel 316 | ||||||||||||||
| 6 | Gasket | PTF | ||||||||||||||
| 7 | Thrust Washer | PTF | ||||||||||||||
| 8 | Packing | PTF | ||||||||||||||
| 9 | Stem Packing | R.PTFE | ||||||||||||||
| 10 | Gland | Stainless Steel 304 | ||||||||||||||
| 11 | Gland Bolt | Stainless Steel 304 | ||||||||||||||
| 12 | Handle | Carbon Steel | ||||||||||||||
| 13 | Stopper | Stainless Steel 304 | ||||||||||||||
| 14 | Snap Ring |
STANDARD
Stainless Steel 304 |
||||||||||||||
| 15 | Bolt | Stainless Steel 304 | ||||||||||||||
| 16 | Handle Bolt | Stainless Steel 304 | ||||||||||||||
| 17 | Cover | Plastic |
DIMENSIONS
